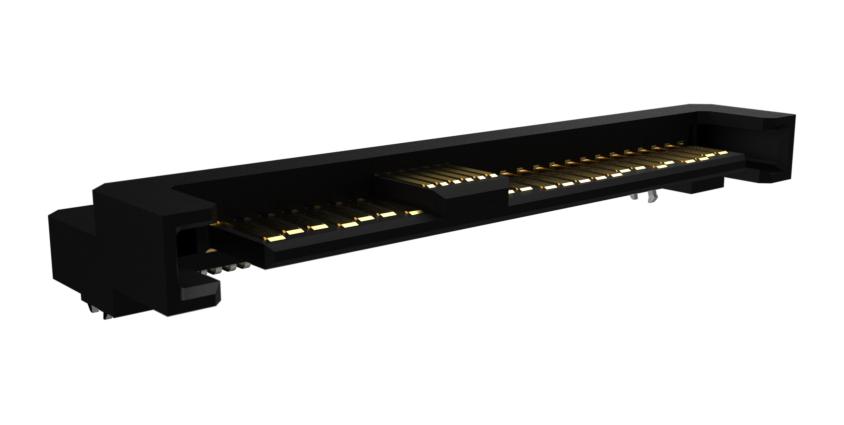

AMPHENOL COMMUNICATIONS SOLUTIONS PSAS4M2130181TR SAS PCIe Connector
Amphenol ICC SAS/PCIe 4.0 (U.2 & U.3) connectors support speeds up to 24Gb/s for SSDs and HDDs, with a durable design of 500 mating cycles. Made from halogen-free thermoplastic, these connectors feature staggered contact lengths, self-aligning guideposts, and compatibility with multiple interface standards including SFF8639. They enable high-performance data transfer for storage servers and enterprise applications, supporting both SAS and SATA drives, with robust mechanical and electrical performance suitable for mission-critical environments.
AMPHENOL COMMUNICATIONS SOLUTIONS PSAS4M2130181TR SAS PCIe Connector Specifications:
- Material: Contact Base Metal: Copper alloy
- Contact Plating: Gold over nickel
- Housing: Halogen-free high temperature thermoplastic (UL94V-0), black
- Electrical Performance: Contact Resistance: 30mΩ max, Current Rating: 1.5A min. per contact, Insulation Resistance: 1000MΩ min.
- Mechanical Performance: Durability: 500 mating cycles, Mating Force: 59N max., Unmating Force: 6N min.
- Environmental: Humidity testing at 40°C for 96 hours, Temperature Life at 85°C for 500 hours, Thermal Shock between -55°C to +85°C, Gas exposure for 14 days.
- Connector Compatibility: Supports SFF8630, SFF8680, SFF8432 interfaces, backward compatible with 12Gb/s, 6Gb/s, 3Gb/s SAS and SATA interfaces.
- Dimensions and Design: 68-position receptacle with self-aligning molded guide posts, staggered contact lengths for optimal mating
Buy the Amphenol Series U.2 & U.3 SAS PCIe 4.0 Connectors: PSAS4M2130181TR
Enhance your storage infrastructure with the high-speed, durable SAS PCIe 4.0 connector. Designed for enterprise servers and storage systems, it supports 24Gb/s transfer speeds, ensuring rapid data flow for SSDs and HDDs. With a robust construction of 500 mating cycles, self-aligning guideposts, and compatibility with multiple interface standards, this connector offers flexibility, reliability, and excellent performance for mission-critical storage applications. Purchase online today for seamless integration into your high-performance storage environment.
Order your Amphenol Series U.2 & U.3 SAS PCIe 4.0 connector today and experience reliable high-speed data transfer for your storage solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS PSAS4M2130181TR?
You can click on the BUY or RFQ button to purchase PSAS4M2130181TR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part PSAS4M2130181TR?
You can download the PSAS4M2130181TR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of PSAS4M2130181TR?
AMPHENOL COMMUNICATIONS SOLUTIONS
