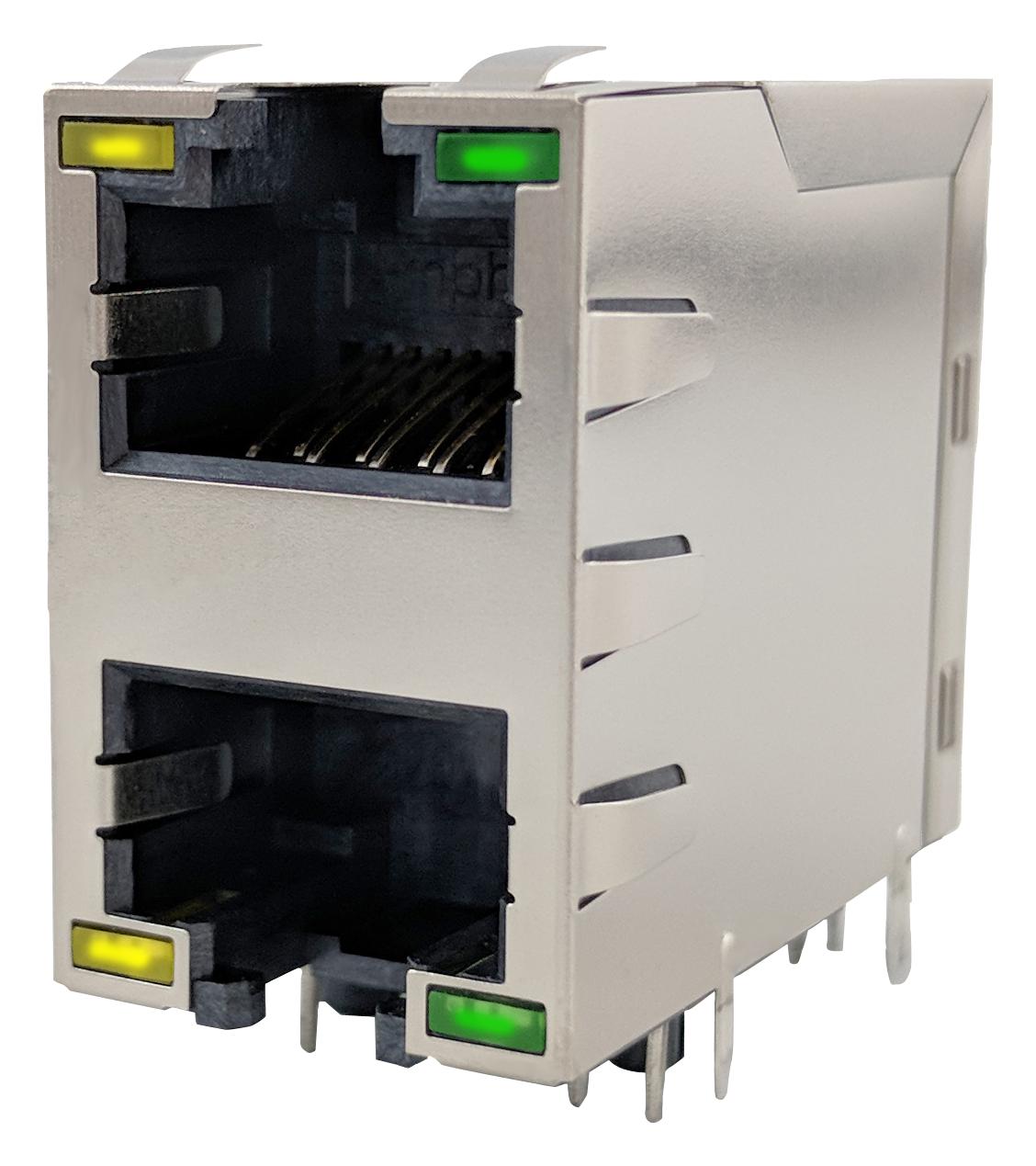

AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288235413 Modular Jack Connectors
The RJE1R series of modular jack connectors by Amphenol offers a versatile 2x1 stacked configuration with options for CAT5e, CAT6, and CATS performance levels, ideal for industrial, communications, and medical applications. The connectors feature high durability with 750 mating cycles and can operate in harsh environments from -55°C to +85°C. These connectors accommodate industry-standard plugs and support up to 10G Ethernet, with customizable LED indicators and shield options for EMI protection. Made from high-temperature thermoplastic, with gold or tin-plated contacts, they ensure reliable electrical performance and environmental resilience, suitable for modern networking needs.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288235413 Modular Jack Connectors Specifications:
- Material: High temperature thermoplastic, UL94V-0 compliant
- Contacts: Phosphor bronze with gold or tin plating
- Shield: Copper alloy, nickel plated or stainless steel
- LED: Forward voltage 1.9V max., 20mA typical, wavelength 565-625nm
- Electrical: Contact resistance 20mΩ max., insulation resistance 500MΩ min., voltage rating 125VAC
- Mechanical: 750 mating cycles, insertion force max 5 lbs., pull retention min 20 lbs
- Operating temperature: -55°C to +85°C
- Environmental: RoHS, REACH, UL certified
- Dimensions: Industry standard footprint, customizable port configurations
- Performance: Supports up to 10G Ethernet and EMI shielding options
Buy the Buy Amphenol RJE1R Modular Jack Part Number RJE1R288235413 Online
Experience the advanced reliability of Amphenol's RJE1R modular jack connectors, supporting CAT5e, CAT6, and CATS standards. These connectors are engineered for industrial and communication applications, offering up to 10G Ethernet capability, superior EMI shielding, and high durability with 750 mating cycles. Constructed from high-temperature thermoplastic with gold or tin plating, they operate reliably within a temperature range of -55°C to +85°C. With customizable LED indicators and shielding options, these connectors ensure optimal performance in harsh environments, making them the ideal choice for networking, industrial IoT, and high-speed data transfer systems.
Get Amphenol RJE1R modular jack today—designed for high durability, versatile performance, and seamless integration with industry-standard plugs.
