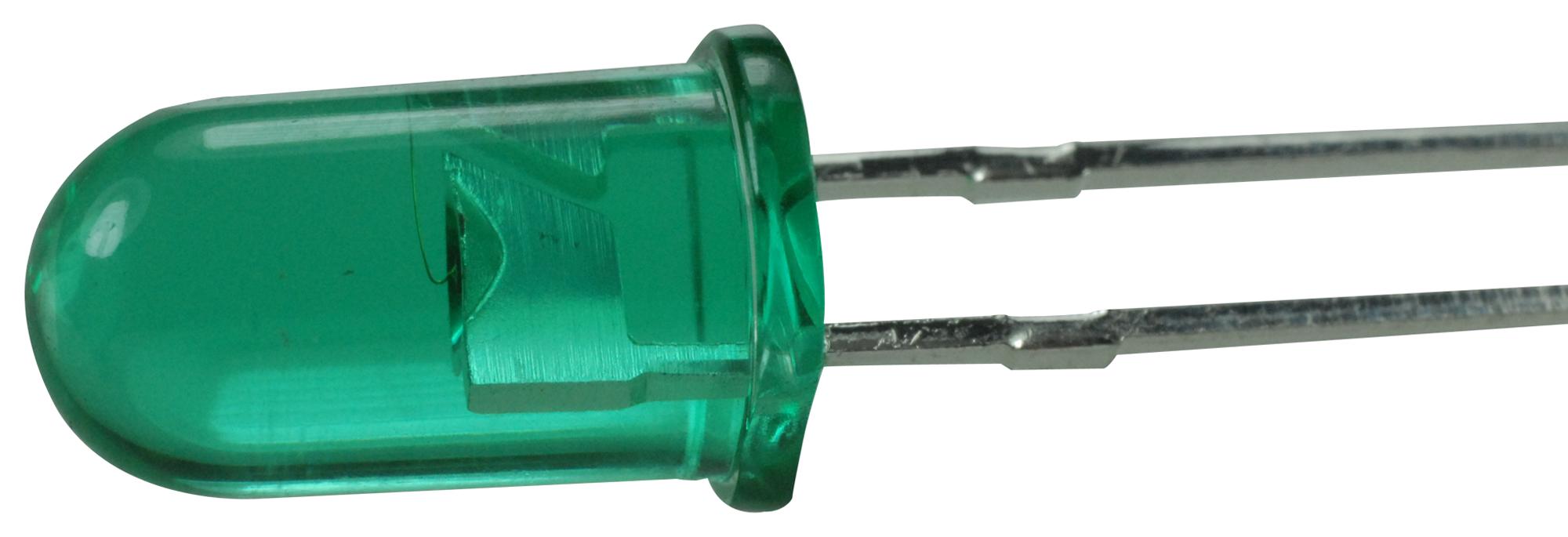

BROADCOM HLMP3519 High-Intensity Green LED Lamp
The HLMP-3519 is a 5mm high-intensity green LED lamp with a non-diffused lens designed for applications requiring focused, high-brightness light output. It produces a narrow beam with high intensity, making it ideal for LED lighting and signaling where visibility is critical. Featuring rugged, general-purpose leads, the LED offers reliable performance, a specified minimum brightness level, and a narrow viewing angle to ensure consistent illumination. It operates efficiently, providing durability and high performance in various industrial, signaling, and illumination applications.
BROADCOM HLMP3519 High-Intensity Green LED Lamp Specifications:
- Lens Type: Non-diffused
- Diameter: 5 mm
- Color: Green
- Peak Wavelength: 565 nm
- Forward Voltage: 2.1 – 2.7 V at 10 mA
- Luminous Intensity: Min. 12.0 med. @ 10 mA
- Viewing Angle: 24 Degrees
- Junction Temperature: 110°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Power Dissipation: 135 mW
- Peak Forward Current: 90 mA
- Average Forward Current: 25 mA
- Reverse Voltage: 5 V
- Thermal Resistance Junction to Lead: 260°C/W
Buy the Avago Series HLMP 3519 Green LED Lamp: HLMP3519
Order the Avago HLMP3519 green LED lamp online today and enjoy high brightness, reliable operation, and rugged design for signaling, lighting, and industrial applications. This 5mm LED features a narrow beam, high luminous intensity, and robustness to withstand demanding environments. Perfect for LED lighting, indicators, and visual signaling, ensuring clear visibility. Easy to integrate into various systems, the HLMP3519 guarantees performance excellence and durability for both professional and industrial use. Purchase now for quick delivery and reliable performance.
Buy Avago HLMP3519 green LED lamp now and experience unrivaled brightness, durability, and efficient signaling performance.
