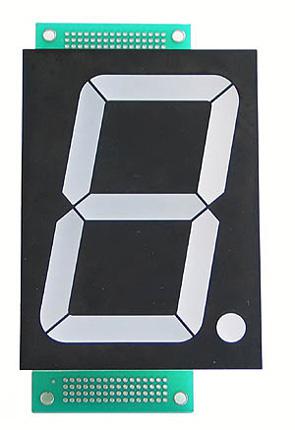

BROADCOM HDSP5503 Seven Segment Display
The HDSP-5503 is a 14.2 mm seven-segment display designed for viewing distances up to 7 meters. It features a right-hand decimal point and is a common cathode device, making it suitable for various applications. The display offers industry-standard size and pinout, with evenly lit segments, mitered corners, and high luminous intensity. It provides high light output and peak current, making it ideal for long digit string multiplexing, particularly in consumer electronics. The device's design ensures excellent appearance and flexibility in usage.
BROADCOM HDSP5503 Seven Segment Display Specifications:
- Size: 14.2 mm (0.56 inch)
- Display type: Seven segment
- Viewing distance: Up to 7 meters (23 feet)
- Color options: AlGaAs Red, High Efficiency Red, Yellow, Green
- Package: Industry standard DIP leads, 15.24 mm (0.6 inch)
- Pinout: Industry standard
- Operation: Common cathode
- Luminous Intensity: High brightness, categorized for uniform display
- Peak Current: 160 mA
- DC Forward Current: 40 mA
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Reverse Voltage: 3.0 V
- Peak Wavelength: 645 nm (Red), 635 nm (Yellow), 566 nm (Green)
- Forward Voltage: 2.0 – 3.0 V at 100 mA
- Max Power: 96 – 105 mW per segment
- Soldering Temp: 250°C for 3 seconds
- Material: Special plastics with optimized optical performance
Buy the Buy Avago HDSP5503 Part Number HDSP-5503 Online
Purchase the Avago HDSP-5503 seven-segment display online today and enjoy superior brightness, industry-standard size, and versatile applications. Its high luminous intensity ensures excellent visibility over long distances, making it ideal for various industrial and consumer electronics projects. Designed with a common cathode configuration, it offers flexibility for integration into digital displays. The durable plastic package ensures longevity and resistance to environmental factors. Quickly order now and enhance your display solutions with reliable, high-quality seven-segment displays.
Buy Avago HDSP-5503 now and experience unmatched reliability and performance in seven-segment displays with high brightness and excellent visibility.
Frequently Asked Questions
Where can I buy BROADCOM HDSP5503?
You can click on the BUY or RFQ button to purchase HDSP5503 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSP5503?
You can download the HDSP5503 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSP5503?
BROADCOM
