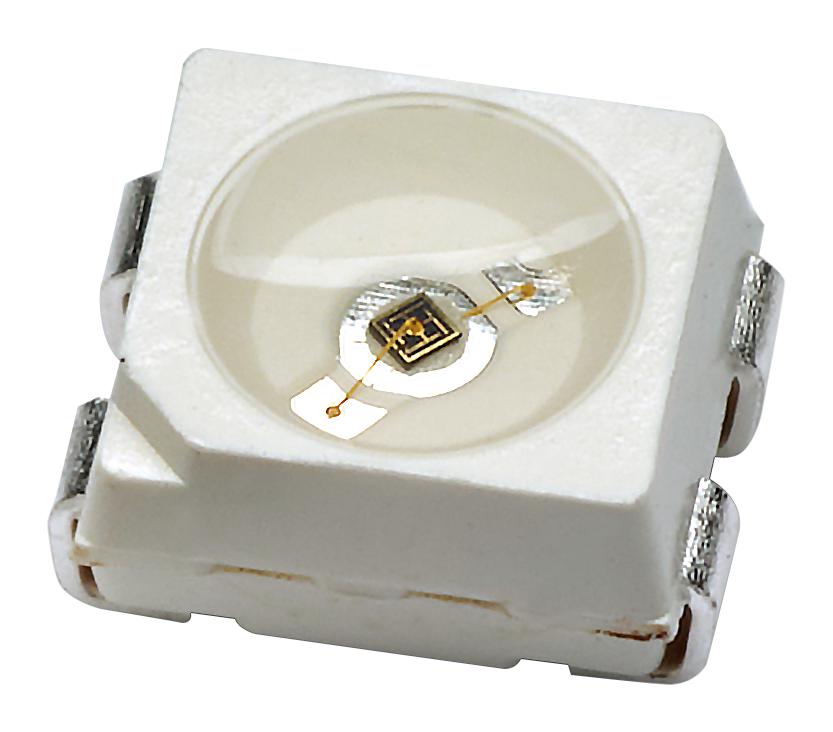

BROADCOM AREQ90C000000 3528 PLCC-4 Infrared LED
The Broadcom AREQ-90C0-00000 is a high-efficiency, double-junction 850-nm infrared emitter packaged in an industrial-standard PLCC-4. This emitter is specifically designed for industrial sensing and infrared illumination applications, particularly for cameras. Its features include a wide viewing angle of 120° and compatibility with reflow soldering processes. The device is packed in tape and reel for easy pick-and-place assembly, making it suitable for automated manufacturing processes. It is ideal for applications requiring reliable infrared emission in industrial environments.
BROADCOM AREQ90C000000 3528 PLCC-4 Infrared LED Specifications:
- Peak Wavelength: 940 nm
- Viewing Angle: 120°
- Radiant Intensity (Ie): 11.2 - 45.0 mW/sr (tolerance ±15%)
- DC Forward Current: 100 mA
- Peak Forward Current: 1000 mA
- Power Dissipation: 200 mW
- LED Junction Temperature: 125 °C
- Operating Temperature Range: -40 to +100 °C
- Storage Temperature Range: -40 to +100 °C
- Spectral Half-Width: 41 nm
- Forward Voltage (VF): 1.6 - 2.0 V (IF = 100 mA)
- Rise Time: 20 ns
- Fall Time: 55 ns
- Thermal Resistance (RθJ-S): 140 °C/W
- Temperature Coefficient of Radiant Intensity (TCIe): -0.25 %/°C
- Temperature Coefficient of Forward Voltage (TCVF): -1.0 mV/°C
- Temperature Coefficient of Peak Wavelength (TCp): 0.04 nm/°C
- Package Type: PLCC-4
- MSL: 3
