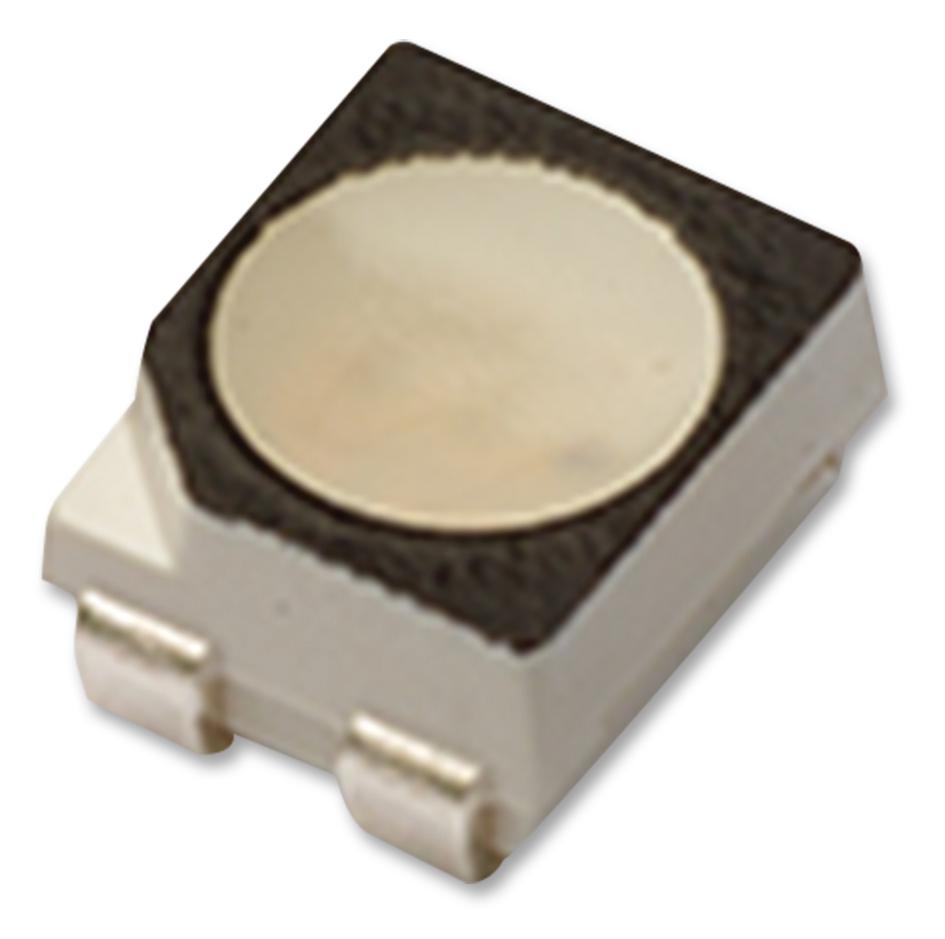

BROADCOM ASMBMTB00B3A2 Tricolor Surface LED
The PLCC4 Tricolor Black Surface LED features a compact package with diffused silicone encapsulation, ideal for interior electronics and full-color display applications. It offers high brightness with InGaN and AllnGaP technologies, a wide 115° viewing angle, and compatibility with reflow soldering. Designed with a black top surface for contrast enhancement, it includes common anode and individual blue, green, and red cathodes. The durable silicone encapsulation ensures reliability, while its ESD sensitivity requires careful handling during assembly. Suitable for indoor full-color displays, it provides consistent luminous intensity and color binning for uniform performance.
BROADCOM ASMBMTB00B3A2 Tricolor Surface LED Specifications:
- Package Type: PLCC-4
- Encapsulation Material: Silicone
- Viewing Angle: 115°
- Max Forward Current: 25mA per color
- Peak Forward Current: 100mA per color
- Power Dissipation: 65mW (Red), 90mW (Green & Blue)
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Junction Temperature: 110°C
- Luminescent Intensity: Red 450-900mcd, Green 1800-3550mcd, Blue 355-715mcd
- Wavelength: Red 619-634nm, Green 522-535nm, Blue 465-473nm
- Reflow Soldering: Compatible, with precautions
- Total Dimensions: Package approximately 2.2 mm x 1.9 mm
- Clearance & Tolerance: +0.20mm unless otherwise specified
- Bin Codes: Multiple intensity and color bins available
- Diffused silicone encapsulation adds flexibility and durability
- Includes a JEDEC MSL3 rating for moisture resistance
- Handling Precautions: ESD sensitive, avoid sharp objects and dust
Buy the Buy Broadcom PLCC4 Tricolor Black Surface LED Part Number ASMB-MTBO-0B3A2 Online
Purchase the Broadcom Series ASMB-MTBO-0B3A2 tricolor surface LED online today to benefit from its high brightness, wide viewing angle, and durable silicone encapsulation. Designed for interior electronic signs and full-color displays, this compact PLCC4 package provides uniform color binning and excellent contrast enhancement. Compatible with reflow soldering, it ensures reliable performance in indoor environments. Simplify your assembly process and achieve consistent illumination quality by ordering this trusted LED solution today, suitable for a variety of professional display applications.
Order your Broadcom Series ASMB-MTBO-0B3A2 high-brightness tricolor LED today and enhance your electronics projects with reliable, high-contrast illumination.
