BROADCOM HLMPDB25B0000 Blue Indicator LED
These blue LED lamps feature industry-standard T-1 and T-134 packages with clear optics, suitable for indicators and general lighting applications. They are available in tape and reel, ammo-pack options, and are binned for color and intensity, making them reliable and rugged for status indicators and message panels. With a viewing angle of 25° or 40°, peak wavelength of 464 nm, and maximum forward current of 70 mA, these LEDs operate efficiently in various commercial and industrial environments, ensuring bright, attractive blue illumination for diverse electronic and display applications.
BROADCOM HLMPDB25B0000 Blue Indicator LED Specifications:
- Package Options: T-1 (3 mm) and T-134 (5 mm)
- Viewing Angles: 25° and 40°
- Peak Wavelength: 464 nm
- Luminous Intensity: Min 30 mcd, Max 1500 mcd
- Forward Voltage: Typ. 3.2 V, Max. 3.8 V at 20 mA
- DC Forward Current: 30 mA
- Peak Forward Current: 70 mA
- Junction Temperature: 115°C
- Operating Temperature: -20°C to +80°C
- Storage Temperature: -30°C to +100°C
- Wave Soldering Temp: 250°C for 3 sec
- Reverse Voltage: Not recommended
- Electrical Response Time: Typ. 500 ns
- Material: Epoxy encapsulated, lead with general purpose leads
- Application: Indicators, message panels, decorative lighting

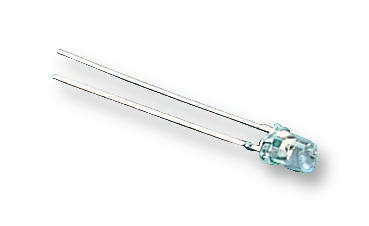

Buy the Avago Series T-1 Blue LED: HLMPDB25B0000
Order the high-quality blue indicator LED now for your electronic projects and industrial displays. These LEDs offer reliable, bright blue illumination with industry-standard T-1 and T-134 packages. They are perfect for status indicators, message panels, and decorative lighting, providing excellent color binning, robust construction, and flexible packaging options including tape, reel, and ammo packs. Invest in dependable blue LED lamps today to ensure optimal performance and visual appeal in your applications.
Buy Avago HLMPDB25B0000 blue LED lamps now and experience bright, reliable illumination with industry-standard packages and multiple packaging options.
Frequently Asked Questions
Where can I buy BROADCOM HLMPDB25B0000?
You can click on the BUY or RFQ button to purchase HLMPDB25B0000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPDB25B0000?
You can download the HLMPDB25B0000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPDB25B0000?
BROADCOM
