BROADCOM HCPL4506000E Optocoupler Interface
The HCPL-4506-000E is an optocoupler-based gate drive interface that features a Gallium Arsenide Phosphide (GaAsP) LED and an integrated high-gain photodetector. It is designed with minimized propagation delay differences between devices, making it an excellent solution for improving inverter efficiency by reducing switching dead time. The device includes an onboard 20 kΩ pull-up resistor that can be enabled by shorting output pins 6 and 7, eliminating the need for an external resistor in typical Intelligent Power Module (IPM) applications. Key features include a minimum pulse width distortion of 450 ns, and a minimum common-mode transient immunity of 15 kV/μs at 1500 VCM. It is suitable for applications in communications and networking, motor drive and control, and industrial systems. Please note that increased market demand has extended lead times, and delivery dates may fluctuate. This product is not eligible for discounts.
BROADCOM HCPL4506000E Optocoupler Interface Specifications:
- Input Voltage: 15 V
- Output Voltage: 0 to 30 V
- Input Forward Voltage: 1.5 V at 10 mA
- CTR (Current Transfer Ratio): >44% at 10 mA
- Propagation Delay: 480 ns typical, 550 ns max
- Pulse Width Distortion: 450 ns
- Common Mode Transient Immunity: 15 kV/μs at 1500 V
- Isolation Voltage: 3750 V rms (HCPL-4506/0466/J456), 5000 V rms (HCNW4506)
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature Range: -55°C to 125°C
- Lead Solder Temperature: 260°C for 10 seconds
- Electric Strength: 3750 V rms (HCPL-4506/0466/J456), 5000 V rms (HCNW4506)

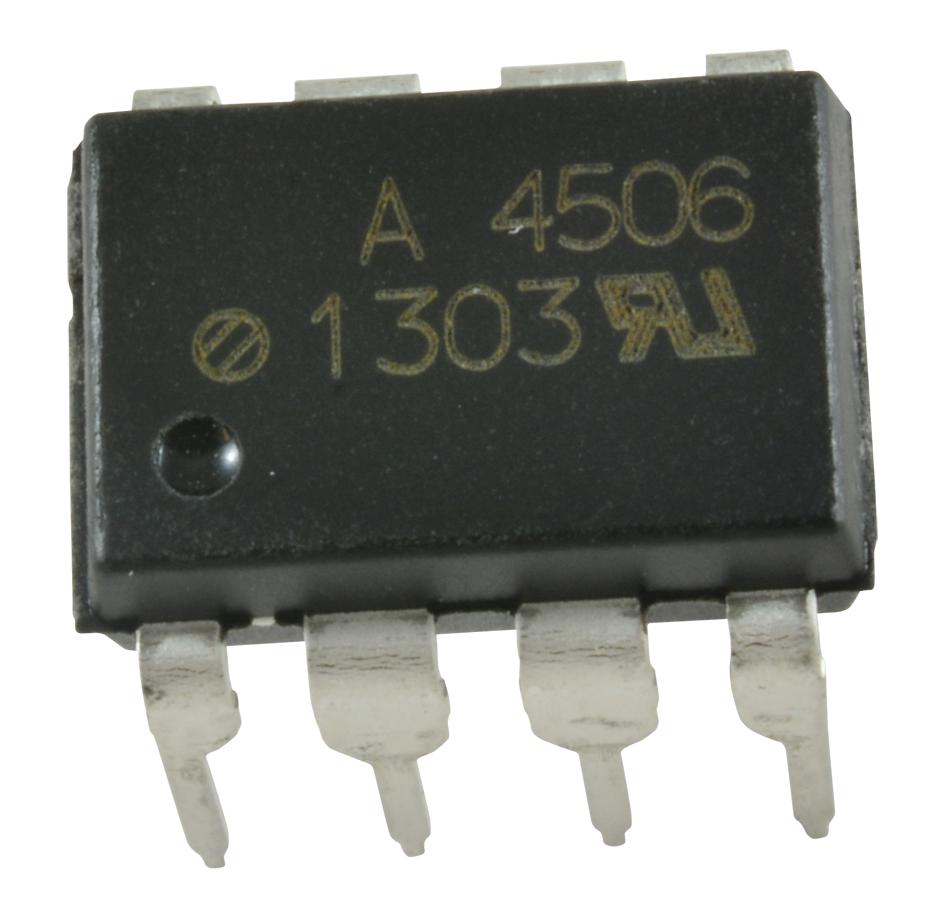

Buy the Avago HCPL-4506 U–2013 Reliable Gate Drive Interface for Industrial Applications
Enhance your industrial and motor drive systems by ordering the Avago HCPL-4506 series online today. Featuring high transient immunity, integrated onboard pull-up resistor, and excellent insulation properties, this optocoupler extends the performance and reliability of your applications. Designed for inverter efficiency, it reduces switching dead time and improves overall control precision. With fast propagation delays and high-coupling performance, the HCPL-4506 series is the ideal choice for industrial automation, communication, and control systems. Purchase now and ensure dependable operation for your critical projects.
Order your Avago HCPL-4506 series gate drive interface today and enhance your inverter and motor control projects with dependable optocoupler technology.
