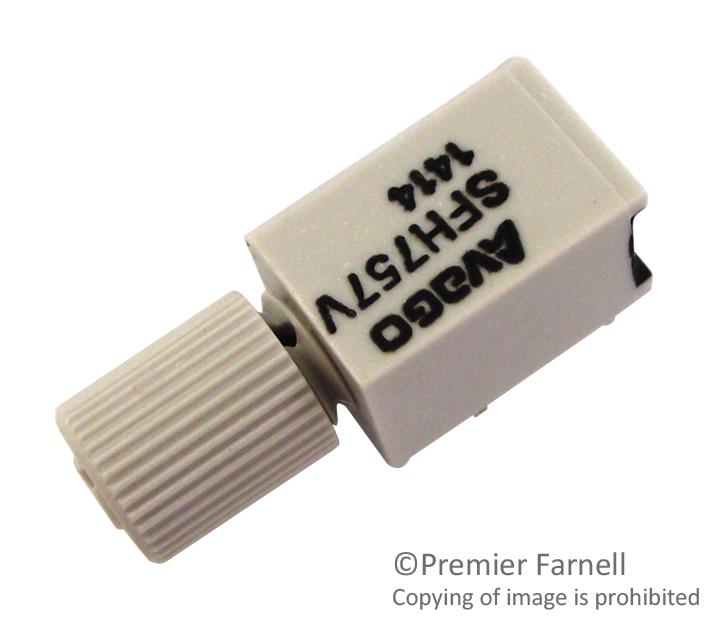

BROADCOM SP000063858 Optical Transmitter
The SP000063858 is a robust 650nm LED transmitter designed for simple optical data transmission over polymer optical fibers. It features a V-housing with an axial locking screw for easy coupling of unconnectorized 2.2mm plastic optical fiber. Equipped with a molded microlens for efficient light coupling, this high-speed LED transmitter supports data rates up to 100 Mbaud. It offers a light-tight housing for superior crosstalk prevention, is auto-insertable and wave solderable, and provides high voltage isolation. Its compact design makes it suitable for applications in fiber optics, industrial automation, process control, lighting, and safety systems.
BROADCOM SP000063858 Optical Transmitter Specifications:
- Wavelength: 650 nm
- Peak Wavelength: 630-685 nm
- Spectral Bandwidth: 20-30 nm
- Maximum Forward Current: 50 mA
- Forward Voltage: 2.0-4 V
- Optical Output Power: -10.5 to 15 dBm
- Temperature Range: -40°C to +85°C
- Soldering Temperature: +260°C (within 2mm, <5s)
- Peak Emission: 650 nm
- Thermal Resistance Junction/Air: 450 K/W
- ESD Protection: 2000V (HBM), 400V (MM)
- Package: V-housing with axial locking screw, 2 pins
- Housing color: White
- Locking force: Approx. 50N
- Coupling method: Molded microlens, axial locking screw
- Supported fiber size: 2.2 mm polymer optical fiber
- Application: Fiber optics, industrial automation, light barriers, optical networks, safety systems
Buy the Avago SFH757V – Reliable Optical Transmitter for Industrial Applications
Purchase the Avago SFH757V optical transmitter online today to ensure your projects benefit from high-speed data transmission, simple fiber coupling, and robust performance. Designed for fiber optics, industrial automation, and safety systems, this compact yet reliable component supports up to 100 MBd speeds, features a molded microlens for efficient light coupling, and comes with an axial locking screw for easy fiber attachment. Its light-tight housing prevents crosstalk, while wave solderability facilitates quick assembly—perfect for demanding industrial applications.
Order your Avago SFH757V high-speed LED transmitter today and enhance your fiber optic projects with reliable, easy-to-couple data transmission components.
Frequently Asked Questions
Where can I buy BROADCOM SP000063858?
You can click on the BUY or RFQ button to purchase SP000063858 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part SP000063858?
You can download the SP000063858 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of SP000063858?
BROADCOM
