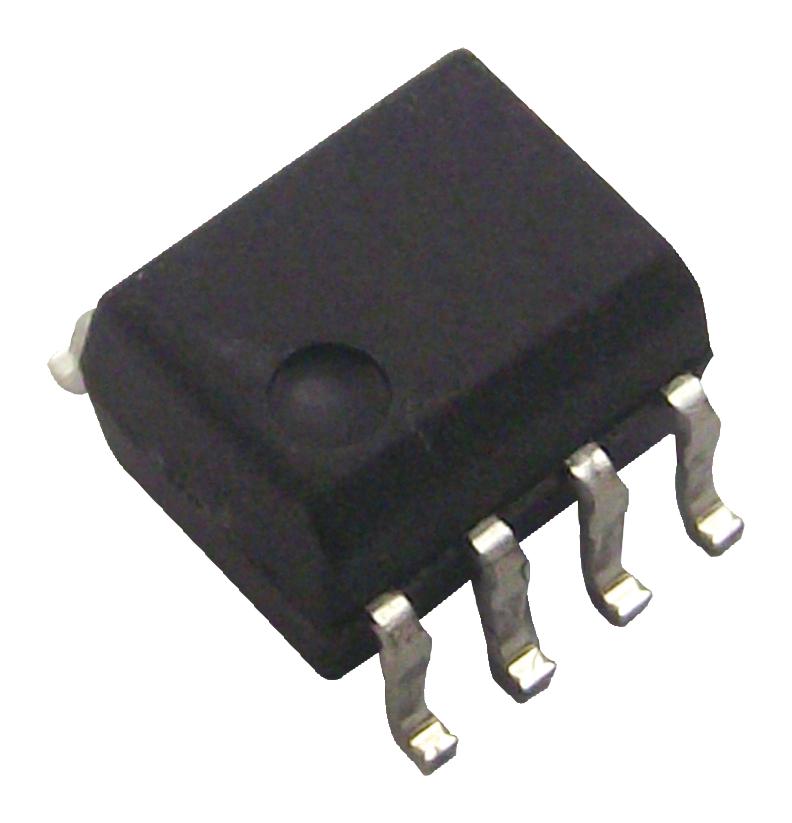

BROADCOM HCPL0631500E High-Speed Optocoupler
The HCPL-0631 is a high-speed, optocoupler with a wide temperature range, combining an LED emitter and a high-gain photodetector. It provides excellent digital isolation with a common mode transient immunity up to 15,000 V/μs, ideal for high-speed logic interface and ground loop elimination. Available in 8-Pin DIP, SOIC-8, and widebody packages, it guarantees reliable AC and DC performance from -40°C to +85°C. The device is UL recognized, CSA approved, and RoHS compliant, making it suitable for safety-critical applications requiring robust electrical isolation and fast switching.
BROADCOM HCPL0631500E High-Speed Optocoupler Specifications:
- Common mode transient immunity: 15,000 V/μs
- Speed: 10 MBd typical
- Input current: 5 mA minimum
- Isolation voltage: 3750 V for UL recognition, 5000 V for RoHS compliant variants
- Temperature range: -40°C to +85°C
- Packages: 8-Pin DIP, SOIC-8, widebody
- Lead (Pb) free and RoHS 6 compliant
- Input to output distance: 1.0 mm nominal
- Input diode forward voltage: 1.75 V typical at 10 mA
- Output: open collector, Schottky-clamped transistor
- Max collector current: 50 mA
- Solder temperature: 260°C for 10 sec
- Insulation resistance: 10^12 Ω at 500 V
- Safety approvals: UL, CSA, IEC/EN/DIN EN 60747-5-5
- Case temperature: Tj max 150°C
Buy the Avago Series HCPL-0631 High Speed Optocoupler: HCPL-0631
Purchase the Avago Series HCPL-0631 high-speed optocoupler online today and enjoy quick delivery. This device offers exceptional electrical isolation with a common mode transient immunity of up to 15,000 V/μs. Suitable for high-speed logic interfaces, ground loop elimination, and digital communication applications, it guarantees reliable performance from -40°C to +85°C. Available in multiple packages including 8-Pin DIP, SOIC-8, and widebody, it is UL recognized, CSA approved, and RoHS compliant for safety-critical environments. Enhance your system's digital isolation efficiency now.
Order your Avago Series HCPL-0631 high-speed optocoupler today and ensure fast, reliable digital isolation for your industrial and communication projects.
Frequently Asked Questions
Where can I buy BROADCOM HCPL0631500E?
You can click on the BUY or RFQ button to purchase HCPL0631500E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL0631500E?
You can download the HCPL0631500E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL0631500E?
BROADCOM
