BROADCOM HCPL2602300E Optocoupler Line Receiver
The HCPL-2602/12 are high-speed optocouplers designed for digital isolation and line receiver applications. They feature a GaAsP LED, an input current regulator, and a high gain detector with an open collector transistor output. The internal regulator clamps line voltage to prevent reflections and offers high common mode transient immunity—1000 V/ms for HCPL-2602 and 3500 V/ms for HCPL-2612—making them ideal for noisy environments. Suitable for computer interfaces, analog/digital conversion, and ground loop elimination, they operate from 0°C to 70°C with guaranteed electrical performance and safety approvals.
BROADCOM HCPL2602300E Optocoupler Line Receiver Specifications:
- Isolation Voltage: 3750 V rms (UL Recognized)
- Input Current: 5 mA typical, maximum 60 mA
- Output Type: Open collector Schottky transistor
- Common Mode Transient Immunity: 1000 V/ms (HCPL-2602), 3500 V/ms (HCPL-2612)
- Operation Temperature Range: 0°C to 70°C guaranteed
- Lead Material: Pb-free, RoHS compliant options available
- Cutoff Line Voltage Regulation: Clamps line voltage, reduces reflections
- Response Speed: Up to 10 MBaud (high speed)
- Package Options: 300 mil DIP-8, Surface Mount Gull Wing
- Safety Approvals: UL Recognized (3750 V rms), CSA Approved
- Application: digital signal isolation, microprocessor interface, power transistor isolation, ground loop elimination

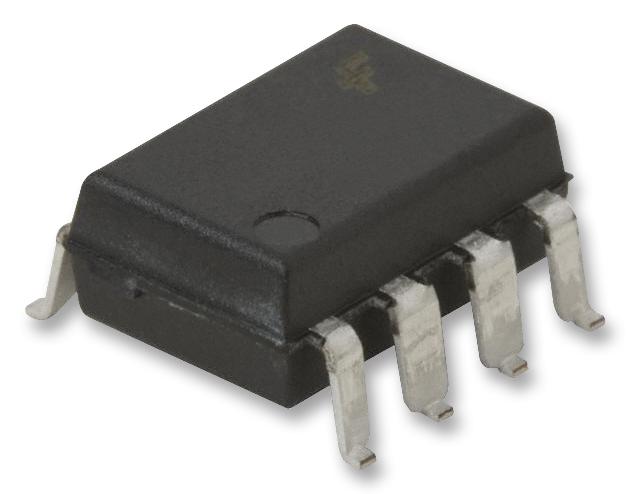

Buy the Avago HCPL2602300E – Reliable Digital Isolator for Industrial Applications
Order the Avago HCPL-2602/12 line receiver optocouplers online today for high-speed digital isolation in challenging environments. These devices feature integrated line regulation, high common mode transient immunity—1000 V/ms for HCPL-2602 and 3500 V/ms for HCPL-2612—making them ideal for industrial automation, communication systems, and power electronics. Designed with Pb-free RoHS compliance, they operate from 0°C to 70°C, guaranteeing performance and safety. Easy to install and suitable for high noise environments, these optocouplers ensure reliable data transmission, ground loop elimination, and power transistor isolation, enabling seamless system operation.
Get Avago HCPL2602300E today—built for high-speed digital isolation and reliable industrial performance.
Frequently Asked Questions
Where can I buy BROADCOM HCPL2602300E?
You can click on the BUY or RFQ button to purchase HCPL2602300E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL2602300E?
You can download the HCPL2602300E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL2602300E?
BROADCOM
