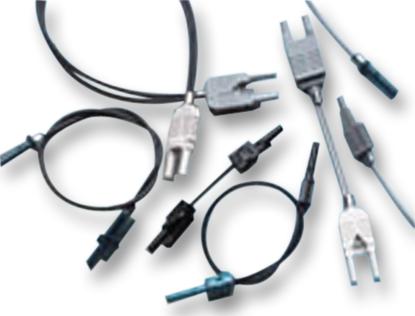

BROADCOM HFBREUS100Z Plastic Optical Fiber Cable
The HFBREUS100Z is a high-performance plastic optical fiber cable featuring extra low attenuation for reliable data transmission. It is a versatile component designed for industrial automation, intra-system links, telecommunication switching, medical instruments, and computer peripherals. Constructed with a single step-index fiber in a robust PE sheath, it complies with UL VW-1 flame retardant standards. Available in unconnectored or connectored options, it supports various lengths up to 100 meters, ensuring high signal integrity with typical attenuation of 0.19 dB/m, suitable for demanding industrial and high-speed data applications.
BROADCOM HFBREUS100Z Plastic Optical Fiber Cable Specifications:
- Flammability: UL VW-1 flame retardant
- Fiber Type: Single step-index plastic optical fiber
- Core Diameter: 1 mm
- Attenuation: 0.19 dB/m typical for extra low loss, 0.22 dB/m for standard
- Wavelength: 660 nm LED source, 650 nm reference
- Temperature Range: -40°C to 85°C for operation, -55°C to 85°C for storage
- Maximum Length: 100 meters
- Bend Radius: Short Term 25 mm, Long Term 35 mm
- Numerical Aperture: 0.47
- Jacket Material: Black polyethylene sheath
- Connector Compatibility: Broadcom Versatile Link family
- Maximum Tensile Force: 50 N (single channel), 100 N (dual channel)
- Cable Dimensions: Diameter 2.20 mm (jacket), 1.00 mm (core)
- Propagation Delay: 5.0 ns/m
- Weight: Approximately 53 g/m
Buy the Broadcom Series HFBR-EXXYYYZ Optical Fiber Cable: HFBREUS100Z
Purchase the Broadcom HFBREUS100Z plastic optical fiber cable online today to ensure your industrial data links and telecommunication systems operate with minimal signal loss. This extra low loss fiber offers excellent attenuation performance of 0.19 dB/m, making it ideal for demanding environments requiring high reliability and high-speed data transmission. Its durable construction, flame-retardant UL VW-1 compliance, and versatile connector options allow for quick installation in factory automation, medical instruments, and LANs. Order now to enhance your network's robustness and performance with Broadcom's proven optical fiber solutions.
Buy Broadcom HFBREUS100Z high-performance optical fiber cable now and enjoy reliable, high-speed data transfer for industrial and telecommunication applications.
Frequently Asked Questions
Where can I buy BROADCOM HFBREUS100Z?
You can click on the BUY or RFQ button to purchase HFBREUS100Z from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBREUS100Z?
You can download the HFBREUS100Z datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBREUS100Z?
BROADCOM
