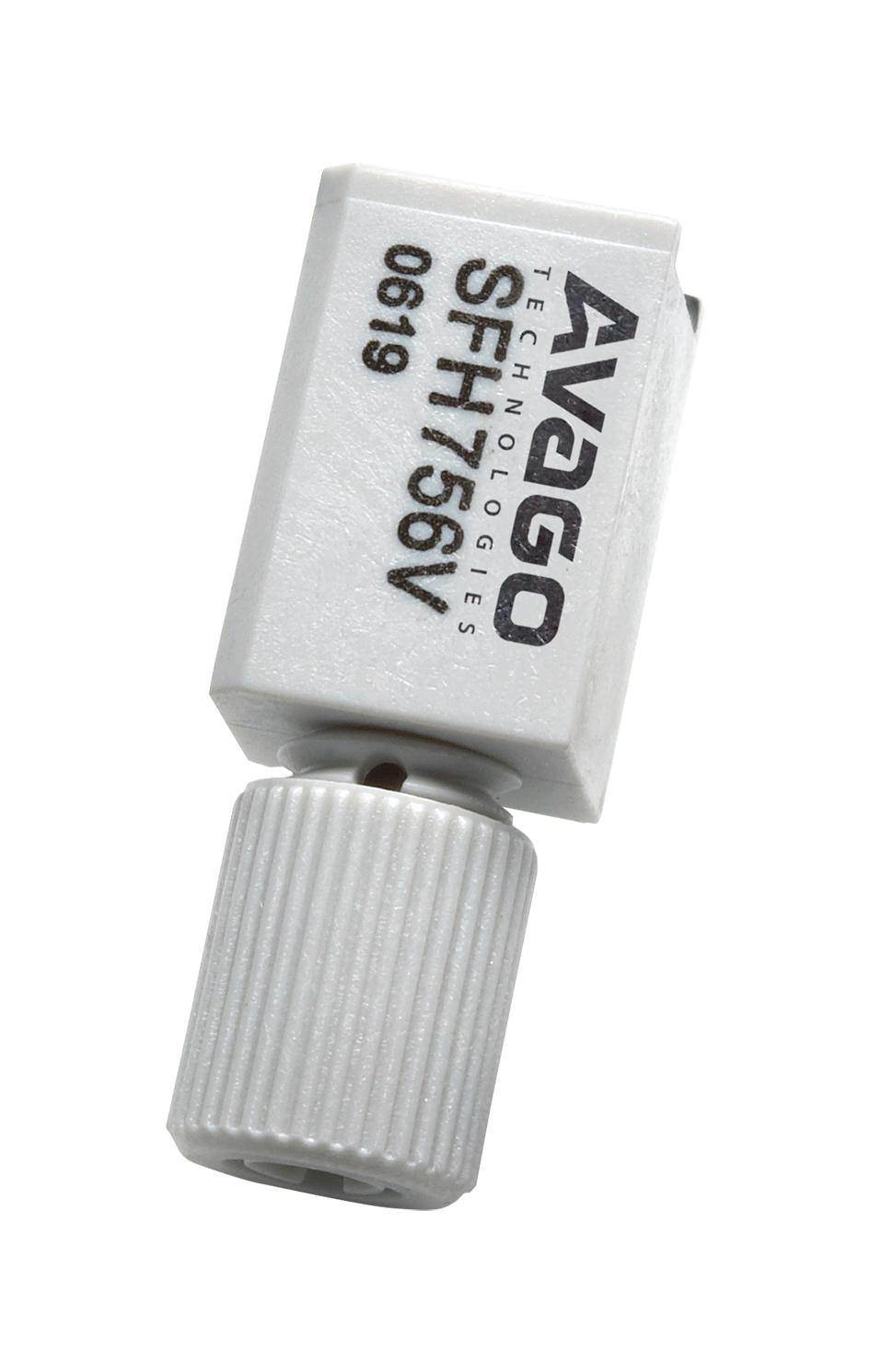

BROADCOM SP000063814 Optical Transmitter
The SP000063814 is a 10 Mbaud optical transmitter designed for simple polymer optical fiber data transmission. It features the SFH756V red LED at 650 nm, capable of up to 10 Mbaud speeds. The V-shaped plastic housing facilitates easy coupling with unconnectorized 2.2 mm fiber, secured via an axial locking screw. Key features include no fiber stripping, molded micro lens for high efficiency, good linearity, and a forward current exceeding 2 mA. Ideal for optical networks, fiber sensors, industrial automation, and consumer electronics, ensuring reliable light transmission with minimal complexity.
BROADCOM SP000063814 Optical Transmitter Specifications:
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Junction Temperature: 100°C
- Soldering Temperature (2 mm from case, < 5s): 260°C
- Reverse Voltage: 3 V
- Forward Current: 50 mA
- Surge Current: 1 A
- Power Dissipation: 120 mW
- Peak Wavelength: 660 nm
- Spectral Bandwidth: 25 nm
- Output Power into Plastic Fiber: 200 μW at 10 mA
- Capacitance: 30 pF
- Switching Times (Rise and Fall): 10 ns
- Temperature Coefficient for Power: 0.4 %/K
- Dimensions (mm): See diagram in datasheet
- Housing: V-shaped plastic housing with axial locking screw
- Connector: 2.2 mm aperture for plastic fiber, no stripping required
- Mounting: Screw attached
Buy the Avago SFH756V – Reliable Optical Transmitter for Industrial Applications
Purchase the Avago SFH756V optical transmitter online today to enhance your optical communication systems. Featuring a 650 nm LED, 10 Mbaud speed, simple fiber coupling without stripping, and a V-shaped plastic housing for easy installation, this device is perfect for fiber networks, industrial automation, and consumer electronics. Its high linearity, efficient micro lens, and reliable operation make it an essential component for professional settings. Order now to secure fast delivery and improve your optical data transmission projects.
Order your Avago SFH756V series optical transmitter today and ensure your fiber optic projects benefit from dependable, high-speed data transmission with easy coupling.
Frequently Asked Questions
Where can I buy BROADCOM SP000063814?
You can click on the BUY or RFQ button to purchase SP000063814 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part SP000063814?
You can download the SP000063814 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of SP000063814?
BROADCOM
