BROADCOM HDSPH103 7-segment LED display
The HDSP-H103 is a low-current 7-segment display utilizing AlGaAs technology. Designed for low power consumption, it offers matched segments at low currents for optimal performance. Featuring high brightness suitable for sunlight conditions and ideal for long digit string multiplexing, this 14.2 mm common cathode display provides evenly lit segments for a clear appearance. It has an industry-standard size, pinout, and configuration, making it suitable for industrial applications. Market demand may result in extended lead times, and the product is not eligible for discounts, ensuring reliable performance in demanding environments.
BROADCOM HDSPH103 7-segment LED display Specifications:
- Display Type: 7-segment AlGaAs-HER LED
- Character Size: 14.2 mm
- Configuration: Common cathode, right-hand decimal
- Luminosity: 420 cd at 4 mA
- Forward Voltage: 2.1 V at 20 mA
- Peak Wavelength: 583 nm
- Dominant Wavelength: 581.5 nm
- Reverse Voltage: 30 V (segment tested)
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Maximum Power per Segment: 52 mW
- Peak Forward Current: 45 mA
- DC Forward Current: 15 mA
- Wave Soldering Temperature: 250°C for 3 seconds
- Package Dimensions: Approximately 17.02 mm x 9.25 mm, with package height and pin dimensions as specified
- Pin Configuration: 10 pins, industry standard layout

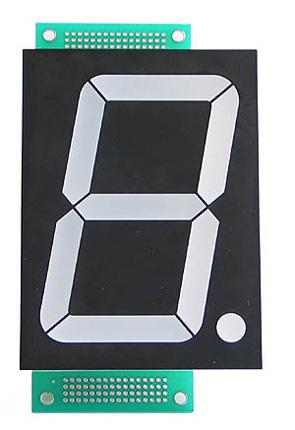

Buy the Avago HDSP-H103 – Reliable Sunlight-Readable Display for Industrial Applications
Order the Avago HDSP-H103 online today for high brightness and low power consumption. Perfect for sunlight conditions and long digit multiplexing in industrial settings. With industry-standard size and pinout, this 14.2 mm common cathode display guarantees clear, evenly lit segments for excellent readability. Designed for demanding environments, its reliable AlGaAs technology ensures durability and performance. Market demand may delay delivery, so purchase now to secure this essential component for your industrial equipment, automation systems, or engineering solutions.
Get Avago HDSP-H103 today—built for precision, high brightness, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy BROADCOM HDSPH103?
You can click on the BUY or RFQ button to purchase HDSPH103 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSPH103?
You can download the HDSPH103 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSPH103?
BROADCOM
