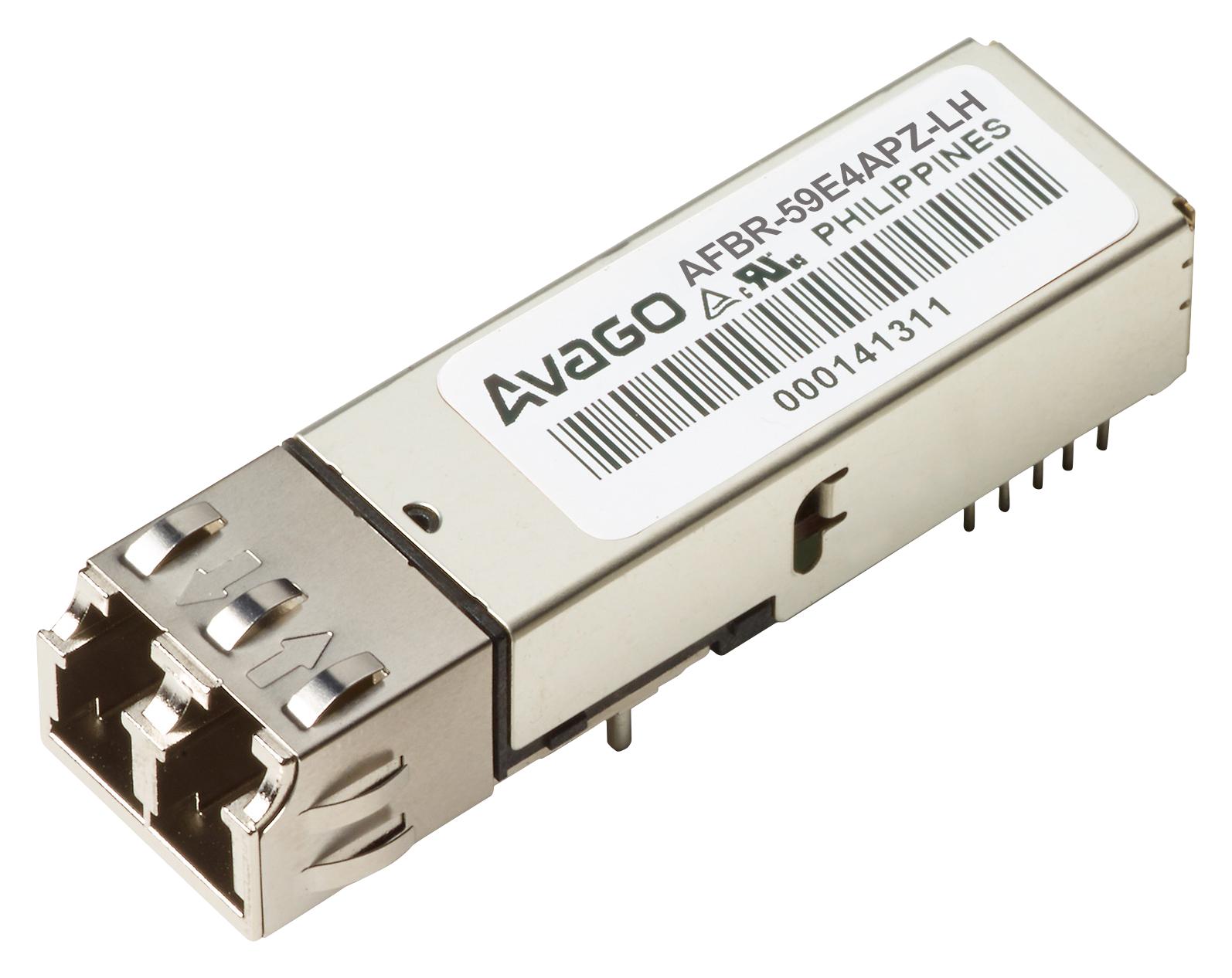

BROADCOM AFBR59E4APZLH Fiber Optic Transceiver
The AFBR-59E4APZ-LH is a power-efficient multimode small form-factor transceiver designed for Fast Ethernet over multimode fiber. It features a 1310 nm LED transmitter and an InGaAs PIN photodiode receiver, offering low power consumption and high immunity to external EMI. Supplied in a 2 x 5 DIP package with an LC connector, it supports 100BASE-FX standards, operates over -40°C to +85°C, and is RoHS compliant. Ideal for cost-effective fiber optic communication in industrial and enterprise network environments.
BROADCOM AFBR59E4APZLH Fiber Optic Transceiver Specifications:
- Package: 2 x 5 DIP style with LC fiber connector interface
- Transmitter: 1310-nm LED with integrated driver circuit
- Receiver: InGaAs PIN photodiode with TIA preamplifier, differential LVPECL output
- Operating Temperature: -40°C to +85°C
- Supply Voltage: +3.3 VDC
- Power Consumption: Approx. 353-450 mW
- Supported Fiber Types: 62.5/125 um, 50/125 um multimode fiber
- Signal Detect Output: LVPECL, Hysteresis 0.5-19 dB, Assert/Deassert times 0-100/0-350 μs
- Optical Power Output: -20 to -14 dBm (62.5/125 um), -14 dBm (50/125 um)
- Spectral Width: 147 nm, Center Wavelength: 1308 nm
- RoHS compliant, Wave solder & aqueous wash process compatible
- Meets IEEE 802.3u 100BASE-FX optical standards
Buy the Broadcom AFBR-59E4APZ-LH – Reliable Multimode Fiber Transceiver for Industrial Applications
Get your Broadcom AFBR-59E4APZ-LH fiber transceiver online today to enjoy high-speed, reliable multimode fiber communication solutions. Designed for Fast Ethernet networks, this transceiver supports dual fiber types, low power operation, and a wide temperature range suitable for industrial applications. Its LC connector ensures easy installation, while RoHS compliance guarantees environmental safety. Whether deploying new systems or upgrading existing ones, purchasing online guarantees quick delivery and confidence in a proven, high-quality product that enhances your network’s performance and dependability.
Order your Broadcom AFBR-59E4APZ-LH transceiver today and enhance your fiber optic network with reliable, low-power performance for demanding environments.
