BROADCOM HDSP3901 LED Seven Segment Display
The HDSP-420x Series LED seven segment displays are designed for high light output and long-distance visibility up to 10 meters. Available in various colors including high efficiency Red, Yellow, and Green, these displays feature industry-standard size and pinout, with options for common anode or cathode configurations. They are suitable for applications requiring vivid, sunlight-readable displays with even illumination, mitered segment corners, and flexible design for long digit string multiplexing. Their robust construction ensures reliable performance in diverse ambient light conditions and long operational life.
BROADCOM HDSP3901 LED Seven Segment Display Specifications:
- Display Size: 20 mm (0.8 inch)
- Color Options: AlGaAs Red, High Efficiency Red, Yellow, Green
- Peak Forward Current: 135-160 mA
- DC Forward Current: 40-40/16 mA
- Max Storage/Operation Temperature: -55°C to +100°C
- Reverse Voltage: 3.0 V
- Luminous Intensity: 6-14 mcd (Red), 2200-7000 cd (Yellow), 680-1500 cd (Green)
- Forward Voltage: 1.8-3.0 V depending on color and current
- Peak Wavelength: 583-645 nm
- Viewing Angle: +50°
- Wave Soldering Temperature: 250°C (3 seconds)
- Mechanical Package: DIP with 15.24 mm (0.6 in.) leads
- Pin Configuration: Common Anode or Common Cathode
- Application: Long-distance digital displays, instrumentation, control panels

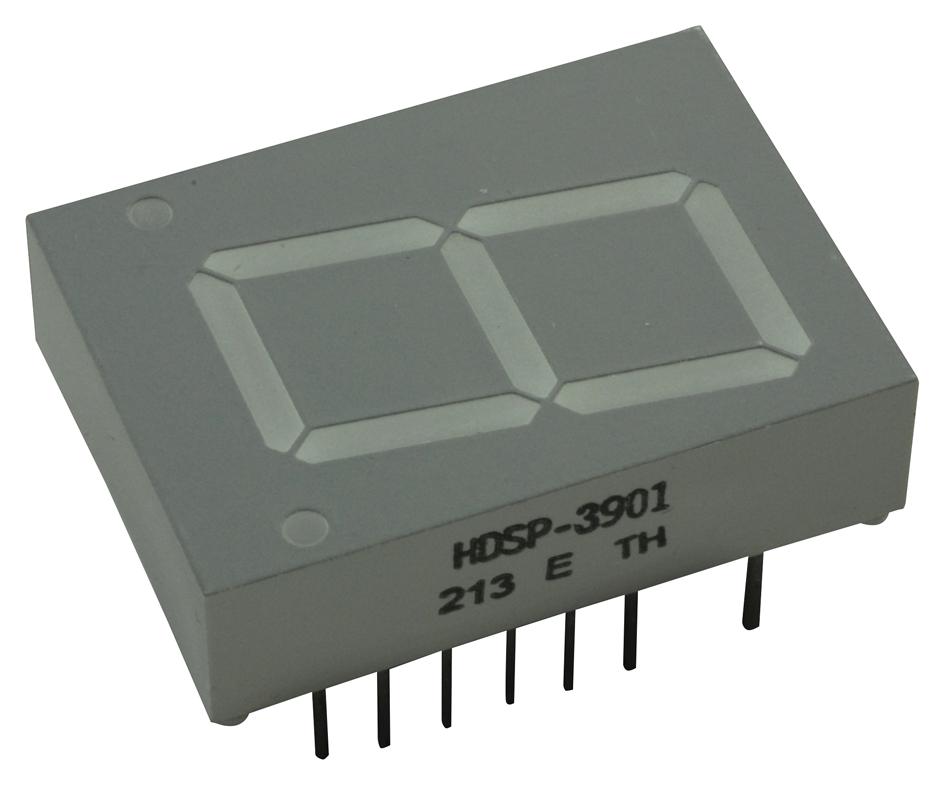

Buy the Buy Avago HDSP-420x Series 20 mm LED Seven Segment Displays Part Number HDSP3901 Online
Experience superior visibility with Avago HDSP-3901 20 mm LED seven segment display, perfect for high ambient light conditions. Featuring multiple color options, industry-standard size, and a choice of common anode or cathode configurations, this display offers excellent light output and even illumination. Its robust design suits long-distance reading up to 10 meters, making it ideal for industrial instrumentation, control panels, and digital signage. Purchase online today for quick delivery and competitive pricing, ensuring your project’s success with reliable, bright displays.
Order your Avago HDSP-3901 20 mm LED seven segment display today and enhance your projects with high brightness, reliable performance, and versatile color options.
Frequently Asked Questions
Where can I buy BROADCOM HDSP3901?
You can click on the BUY or RFQ button to purchase HDSP3901 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSP3901?
You can download the HDSP3901 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSP3901?
BROADCOM
