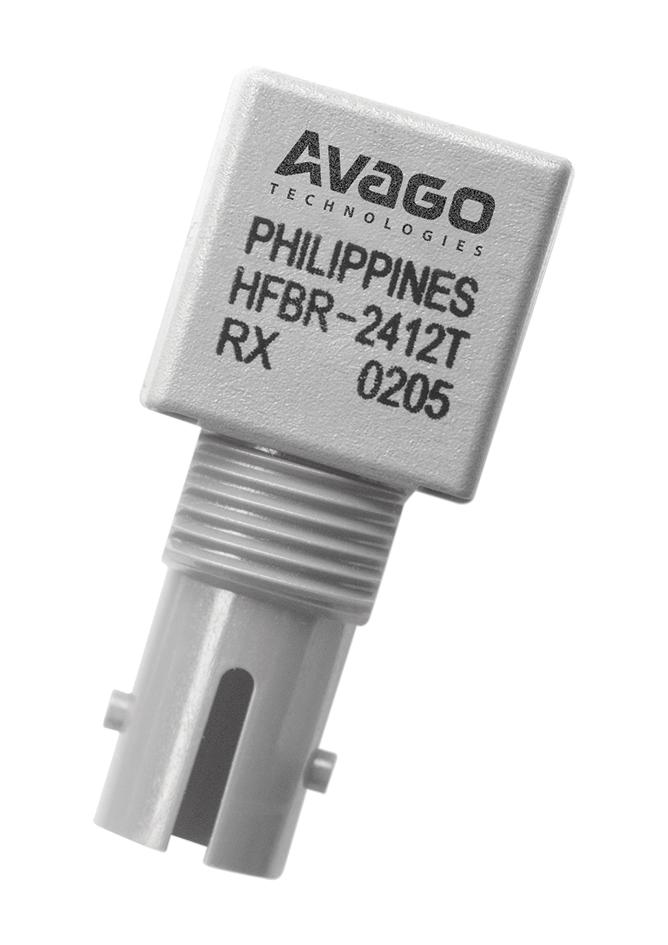

BROADCOM HFBR2412TCZ fiber optic receiver
The HFBR-2412TCZ is a high-performance, 820nm miniature fiber optic receiver designed for 5 Mbaud data transfer. It supports multiple fiber sizes including 50/125, 62.5/125, 100/140, and 200 µm, and integrates seamlessly with industry-standard ST connectors through a threaded conductive port. This versatile receiver is compatible with TTL circuitry, has a wide operating temperature range from -40°C to +85°C, and meets IEEE 802.3 Ethernet, IEEE 802.5 token ring, and TIA/EIA-785 standards, making it ideal for fast, reliable fiber optic data links in industrial and networking environments.
BROADCOM HFBR2412TCZ fiber optic receiver Specifications:
- Wavelength: 820 nm
- Data Rate: 5 MBd
- Fiber Size Compatibility: 50/125, 62.5/125, 100/140, 200 µm
- Connector Type: ST threaded conductive port
- Sensitivity: Peak optical input power of -24 dBm
- Responsivity: 45.11.5 mV/W
- Linearity: Meets IEEE 802.3, IEEE 802.5, and TIA/EIA-785 standards
- Operating Temperature Range: -40°C to +85°C
- Output Type: TTL compatible, open collector
- Maximum Output Current: 25 mA
- Supply Voltage: 4.75 V to 5.25 V
- Output Voltage Range: -0.5 V to 18 V
- Optical Port Diameter: 400 µm
- Mechanical Dimensions: Refer to detailed port specifications
- ESD Susceptibility: Electrostatic discharge capability of 15 kV (air), 8 kV (contact)
- Package: Low-cost, dual-inline plastic housing
- Applicable Standards: IEEE 802.3 Ethernet, IEEE 802.5 token ring, TIA/EIA-785 100Base-SX
Buy the Avago Series 820nm Fiber Optic Receiver: HFBR-2412TCZ
Get the Avago HFBR-2412TCZ fiber optic receiver online today for fast, efficient, and dependable data communication solutions. Designed for 5 MBd data transfer, it supports various fiber sizes including 50/125, 62.5/125, 100/140, and 200 microns, ensuring compatibility with industry-standard ST connectors. Its robust construction allows operation across a wide temperature range from -40°C to +85°C, making it ideal for industrial environments. Whether for networking, data transmission, or industrial control systems, this high-performance receiver offers excellent sensitivity, optical power handling, and reliable TTL output, ensuring your systems perform at their best.
Order your Avago Series HFBR-2412TCZ fiber optic receiver today and enjoy high-performance, reliable data transfer in industrial and networking applications.
Frequently Asked Questions
Where can I buy BROADCOM HFBR2412TCZ?
You can click on the BUY or RFQ button to purchase HFBR2412TCZ from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR2412TCZ?
You can download the HFBR2412TCZ datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR2412TCZ?
BROADCOM
