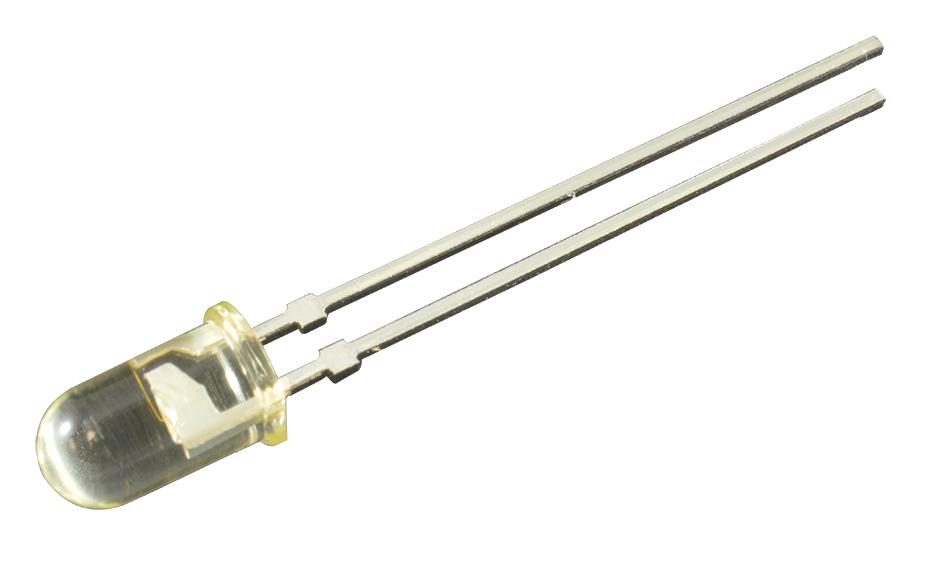

BROADCOM HLMP3850 Yellow Ultra-Bright LED
The HLMP-3850 is a 5mm ultra-bright yellow LED lamp with a non-diffused lens, manufactured from gallium arsenide phosphide on gallium phosphide. This LED offers superior performance compared to conventional LEDs due to its higher intensity material, resulting in improved brightness and color performance. It features sturdy leads, is IC compatible with low current operation, and is designed to be reliable and durable. Suitable applications include LED lighting and signaling.
BROADCOM HLMP3850 Yellow Ultra-Bright LED Specifications:
- Package: T-13/4 (5 mm)
- Color: Yellow
- Lens: Non-diffused
- Material: Gallium Arsenide Phosphide on Gallium Phosphide
- Brightness: High Brightness
- Leads: Sturdy, IC compatible, low current capability
- Peak Forward Current: 60 mA
- Average Forward Current: 20 mA
- DC Forward Current: 20 mA
- Reverse Voltage: 5 V
- Junction Temperature: 110°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Wavelength: Approx. 585 nm
- Dimensions: 5 mm diameter, typical lead length approximately 24 mm
- Compliance: RoHS
Buy the Avago Series HLMP Yellow LED: HLMP3850
Purchase the Avago HLMP3850 yellow LED online today for high brightness performance in lighting, signaling, and indicator applications. Its sturdy leads and IC compatibility ensure reliable operation in diverse environments. Designed from gallium arsenide phosphide on gallium phosphide, this 5mm LED provides excellent color and brightness with a non-diffused lens, ideal for professional use. Available with RoHS compliance, it offers a long-lasting solution for electronic lighting needs, making it a perfect choice for engineers, hobbyists, and industrial applications alike.
Get Avago HLMP3850 today—built for brightness, reliability, and efficient signaling in your electronic projects.
Frequently Asked Questions
Where can I buy BROADCOM HLMP3850?
You can click on the BUY or RFQ button to purchase HLMP3850 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP3850?
You can download the HLMP3850 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP3850?
BROADCOM
