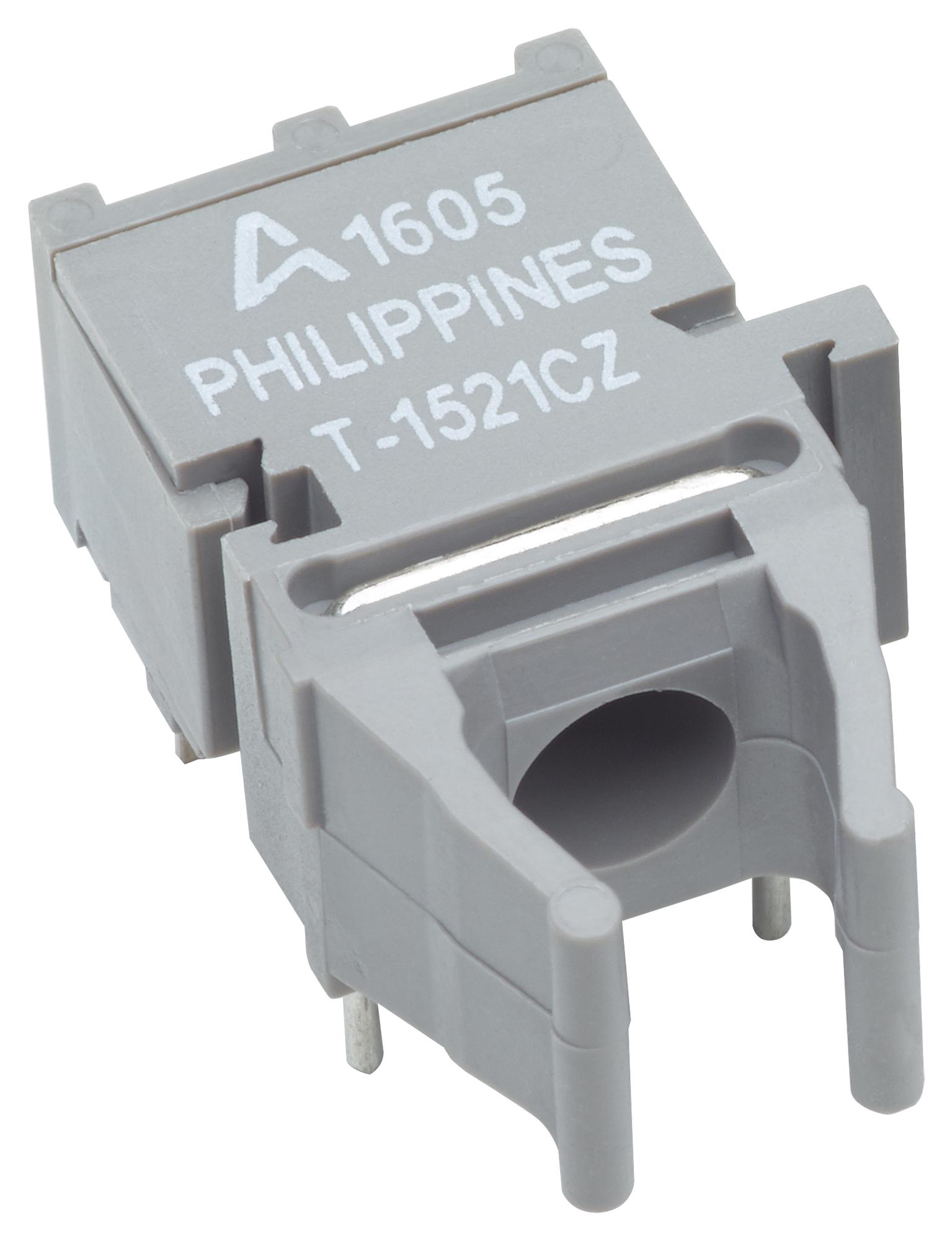

BROADCOM AFBR1521CZ Optical Transmitter
The AFBR-15x1CZ is a versatile analog optical transmitter utilizing a 650-nm LED source, designed for point-to-point data links over plastic optical fiber (POF) or plastic-clad silica (PCS). It supports distances up to 58 meters with 1-mm POF and 500 meters with 200-um PCS, operating efficiently within -40 °C to +95 °C. The device features low power consumption, RoHS compliance, and easy interfacing with TTL logic levels, making it ideal for industrial automation, high-voltage isolation, and serial bus applications in harsh environments.
BROADCOM AFBR1521CZ Optical Transmitter Specifications:
- Operating temperature range: -40°C to +95°C
- Support for POF up to 58 meters; PCS up to 500 meters
- LED wavelength: 650 nm
- Peak output power: -1 to 2 dBm (1 mm POF), -12 to -9 dBm (200 um PCS)
- Maximum input current: 45 mA (peaking), short-term 80 mA
- Forward voltage: 14 V to 23 V
- Reverse voltage: 3 V
- Peak emission wavelength: 630-685 nm
- Spectral width: 20 nm
- Rise/Fall time: 13-30 ns/7-30 ns
- Power consumption: Low, RoHS-compliant
- Supports data rate up to 5 MBd, compatible with industrial link systems
- Physical dimensions: Compatible with standard PCB mountings, stackable
- Housing color: Gray for transmitter
- RoHS compliant, suitable for harsh industrial environments
- Moisture Sensitivity Level 3, requires anti-moisture handling
- Optional packages include horizontal, vertical, and tilted configurations for flexible mounting
Buy the Broadcom Series AFBR 15x1CZ Optical Transmitter: AFBR1521CZ
Get the Broadcom Series AFBR1521CZ optical transmitter online today to enable high-performance, reliable data transmission over plastic optical fiber or silica cables. Designed for industrial automation, serial systems, and ground isolation, this low-profile device supports distances up to 58 meters with 1-mm POF and up to 500 meters with 200-um PCS. Its robust, RoHS-compliant construction ensures durability in harsh environments. Easy to install and compatible with standard PCB mountings, purchase online now for seamless integration into your control systems and automation projects.
Order your Broadcom Series AFBR1521CZ analog optical transmitter today and ensure reliable data links over long distances with industrial-grade quality.
