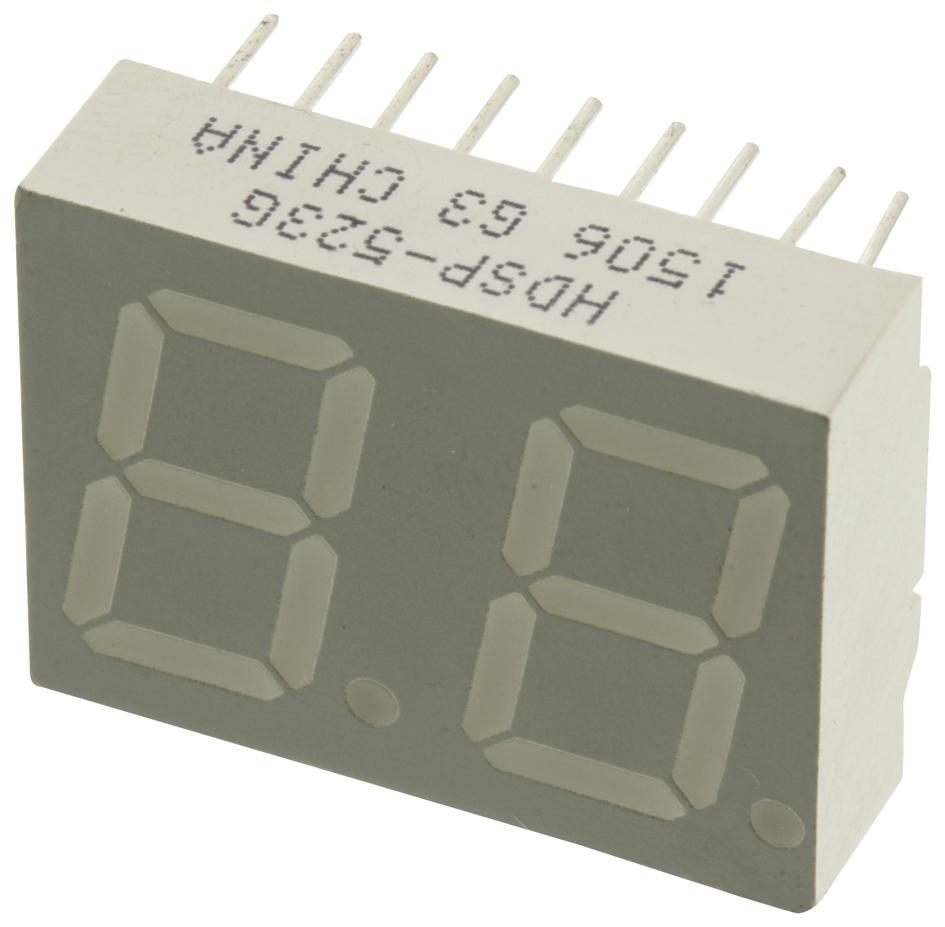

BROADCOM HDSP523G Two Digit Seven Segment Display
These 14.2 mm two digit seven segment displays are industry standard, available in common anode or cathode configurations with high efficiency red, green, or yellow colors. Designed for indoor use, they feature gray-faced displays with mitered corners for enhanced contrast. They operate within -35°C to +85°C temperatures, suitable for various electronic applications including indicator panels. The displays have DIP leads on 2.54 mm centers, with dimensions optimized for easy mounting and reliable performance in control and display systems.
BROADCOM HDSP523G Two Digit Seven Segment Display Specifications:
- Size: 14.2 mm (0.56 inch) digit height
- Configuration: Two digits, common anode or cathode
- Colors: Red, green, yellow
- Pinout: Industry standard DIP leads at 2.54 mm (0.1 in) centers
- Temperature Range: -35°C to +85°C
- Storage/Operating Temperature: -35°C to +85°C
- Peak Forward Current: 90 mA (red), 60 mA (yellow), 90 mA (green)
- Forward Voltage: 2.05-2.6 V (red), 2.0-2.4 V (green), 2.1-2.4 V (yellow)
- Luminous Intensity: Up to 7.69 candela (red), 5.13 candela (green), 5.13 candela (yellow)
- Peak Wavelength: 640 nm (red), 568 nm (green), 589 nm (yellow)
- Wave Soldering Temperature: 250°C for 3 seconds
- Soldering: Not recommended for multiple reflow cycles
- Certification: Outgoing Quality Assurance inspection
- Applications: Indoor displays, indicators, control panels
Buy the Avago HDSP523G – Reliable Indoor Seven Segment Display for Electronic Indicators
Discover the high-quality Avago HDSP523G two digit seven segment display suitable for indoor electronic indicators and control panels. Featuring industry standard size and pin-out, these displays come in vibrant red, green, or yellow colors, ensuring excellent contrast and readability. Designed for reliable performance within -35°C to +85°C temperatures, they offer a practical solution for various industrial and consumer applications. Order online now to ensure fast delivery and enhance your project with dependable, efficient display components.
Order your Avago HDSP523G Series two digit seven segment display today and give your electronic control projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy BROADCOM HDSP523G?
You can click on the BUY or RFQ button to purchase HDSP523G from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSP523G?
You can download the HDSP523G datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSP523G?
BROADCOM
