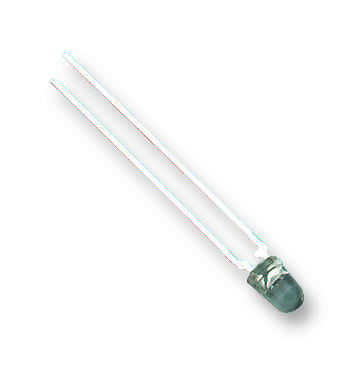

BROADCOM HLMPK401 T-1 Diffused LED Lamps
This T-1 (3 mm) diffused LED lamp family is ideal for general-purpose indicator applications, offering high intensity, wide viewing angles, and reliable leads. Available in vibrant colors like red, orange, yellow, and green, these LEDs feature optical design balanced for superior light output. They are suitable for PCB mounting with recommended soldering profiles ensuring durability. Designed for electronics and illumination systems, these LEDs support various packaging options including tape and reel or bulk, making them versatile for manufacturing and repair tasks. They provide consistent performance across different ambient conditions and have robust mechanical features for long-term use.
BROADCOM HLMPK401 T-1 Diffused LED Lamps Specifications:
- Package Diameter: 3 mm
- Viewing Angle: 60 degrees
- Peak Wavelengths: Red 635 nm, Orange 600 nm, Yellow 583 nm, Green 565 nm, Emerald Green 558 nm
- Luminous Intensity Range: Red/Orange 24 to 10200 mcd, Yellow 2.5 to 18000 mcd, Green/Emerald Green 125.7 to 6800 mcd
- Forward Voltage (Typ.): Red 1.9 V, Orange 2.0 V, Yellow 2.0 V, Green 2.1 V, Emerald Green 2.1 V
- Maximum Forward Current: 90 mA for high efficiency red/green, 60 mA for orange/yellow
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Mechanical Option: Bulk, Tape & Reel, Ammo Pack
- Orientation: Common cathode configuration
- Soldering Profile: Preheat maximum 150°C, peak temperature 250°C, dwell time within recommended limits
- Material: GaAsP on GaP for red, GaP for yellow and green, with reliability for industrial and commercial indicators
Buy the Avago Series T-1 Diffused LED: HLMPK401
Enhance your electronics projects with Avago HLMPK401 T-1 diffused LED lamps, available in bright red, orange, yellow, and green colors. Designed for general-purpose indicator applications, these LEDs offer high intensity, wide viewing angles, and robust leads ensuring long-term durability. Suitable for PCB assembly, they support various packaging options including tape and reel and bulk packs for flexible manufacturing. Their reliable performance across temperature ranges makes them ideal for industrial, commercial, and electronic indicator use, providing consistent luminosity and energy efficiency in your designs.
Buy Avago HLMPK401 now and experience unmatched reliability and performance in bright, energy-efficient indicator lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMPK401?
You can click on the BUY or RFQ button to purchase HLMPK401 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPK401?
You can download the HLMPK401 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPK401?
BROADCOM
