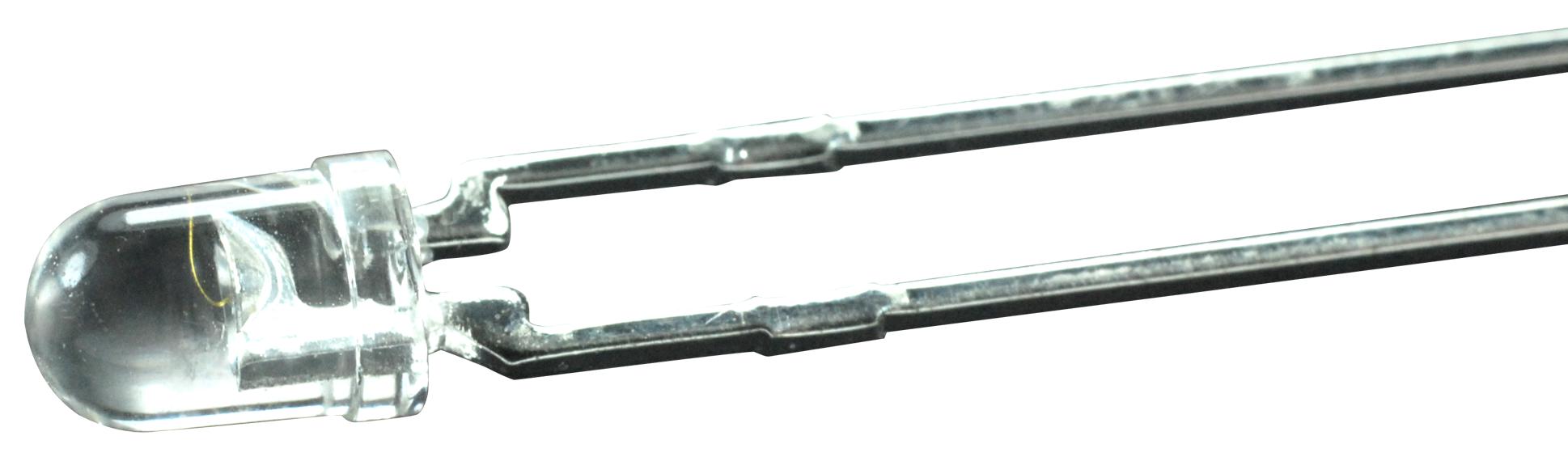

BROADCOM HLMP1340 Red LED
The HLMP-1340 is a 3mm ultra-bright red LED lamp with a non-diffused lens, made from gallium arsenide phosphide on gallium phosphide. It offers superior brightness and color performance, is IC compatible, and capable of low current operation. Designed for reliability and durability, it features sturdy leads, making it suitable for LED lighting, backlighting, and signaling applications. This rugged LED provides consistent performance in various environments, ensuring clear visual indication and long-term operation, with extended lead times due to high demand and no discounts offered.
BROADCOM HLMP1340 Red LED Specifications:
- Dimensions: 3mm diameter
- Color: Red
- Lens Type: Non-diffused
- Material: Gallium arsenide phosphide on gallium phosphide
- Forward Voltage: 1.5 to 2.2 V
- Peak Wavelength: 635 nm
- Luminous Intensity: 55 to 145 lumens
- Peak Forward Current: 90 mA
- Average Forward Current: 25 mA
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Reverse Voltage: 5 V
- Dimmension Tolerance: ±0.2 mm
- Mounting Type: Through-hole
- Lead Diameter: 0.65 mm
- RoHS Compliant
Buy the Avago Series HLMP Red LED: HLMP-1340
Order the Avago HLMP-1340 red LED online today and enjoy superior brightness and reliable performance for your signaling and lighting needs. Designed with durable leads and a non-diffused lens, this 3mm LED is suitable for various applications including backlighting, LED indicators, and visual signaling. Its IC-compatible low current operation makes it ideal for electronics projects, offering long-lasting and consistent illumination. Ensure your projects are equipped with top-quality components by purchasing this high-performance red LED directly from our online store with fast delivery and secure checkout.
Buy Avago HLMP-1340 now and experience unmatched reliability and performance with high brightness red LED lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMP1340?
You can click on the BUY or RFQ button to purchase HLMP1340 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP1340?
You can download the HLMP1340 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP1340?
BROADCOM
