BROADCOM HCPL7520000E Current Sensing IC
The HCPL-7520 is an isolated linear current sensing IC designed for accurate motor current monitoring and general analog signal isolation. It features sigma-delta ADC technology, high common-mode rejection of 15 kV/us at 1000 V, and robust safety compliance including UL 1577. The compact 8-pin DIP package and optional gull-wing surface mount version provide versatility for low-power inverter, motor, and power supply applications. It delivers high stability and precision in noisy environments with low offset voltage, minimal gain drift, and excellent transient immunity, ensuring reliable performance in demanding control systems.
BROADCOM HCPL7520000E Current Sensing IC Specifications:
- Isolation Voltage: 3750 Vrms (UL 1577), 6000 Vpeak transient withstand
- Input Offset Voltage: -0.6 mV
- Gain Drift: 60 ppm/°C
- Bandwidth: 100 kHz
- Common-Mode Rejection: 15 kV/μs at Vcm = 1000 V
- Input Voltage Range: ±200 mV (accurate), ±2 V (functional)
- Supply Voltage: 4.5 V to 5.5 V
- Power Dissipation: 600 mW maximum
- Input DC Resistance: 700 kΩ
- Output Impedance: 15 Ω
- Temperature Range: -40°C to 85°C (operation), -55°C to 125°C (storage)
- Operational Safety: IEC/EN/DIN EN 60747-5-2, CSA, UL recognized
- Package: DIP-8 (standard), gull-wing surface mount option available
- Input Leakage Current: 0.45 nA/°C
- Soldering Temperature: 260°C for 10 sec

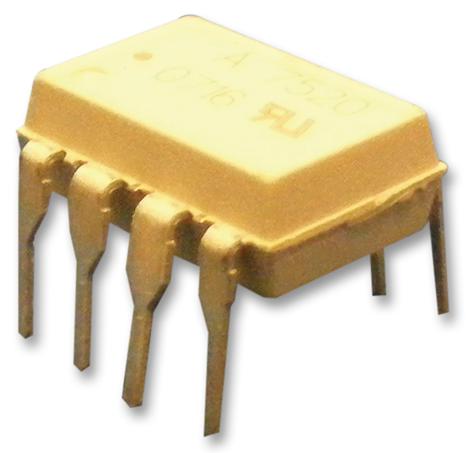

Buy the Buy Avago HCPL-7520 Part Number HCPL-7520-560E Online
