BROADCOM ACPLK34T560E Automotive Gate Driver
The ACPL-K34T is a high-performance automotive optocoupler designed for high-frequency MOSFET driving in power conversion and motor control applications. It features a built-in AlGaAs LED optically coupled to an integrated circuit with a power output stage, delivering up to 2.5 A peak output current and a rail-to-rail output voltage. This device offers fast propagation delay (max 110 ns), input hysteresis, under-voltage lockout, and wide operating voltage range (10-20 V). Certified for automotive temperatures and insulation standards, it ensures reliable signal isolation and protection in harsh environments, making it ideal for EV chargers, hybrid power trains, and industrial drives.
BROADCOM ACPLK34T560E Automotive Gate Driver Specifications:
- Peak Output Current: 2.5 A max.
- Propagation Delay: Max 110 ns
- Input Voltage: 55 V max.
- Output Voltage: Rail-to-Rail
- Operating Temperature Range: -40°C to 125°C
- Isolation Voltage: 5000 Vms (UL 1577)
- Insulation Voltage: 1140 Vpeak (V iom)
- Vcc Range: 10 V to 20 V
- Input Forward Voltage: 1.25 V at 10 mA
- Input Reverse Voltage: 6 V
- Power Dissipation: IC = 500 mW max.
- Temperature Coefficient of Forward Voltage: -15 mV/°C
- UL Recognized, CSA, IEC/EN/DIN EN 60747-5-5 approved
- Thermal Resistance: R11=191°C/W (Low conductivity), R11=155°C/W (High conductivity); other values: R12=68.5°C/W, R22=77°C/W (low conductivity), R22=41°C/W (high conductivity)
- Rise Time & Fall Time: 10-30 ns
- Dead Time Distortion: ±50 ns

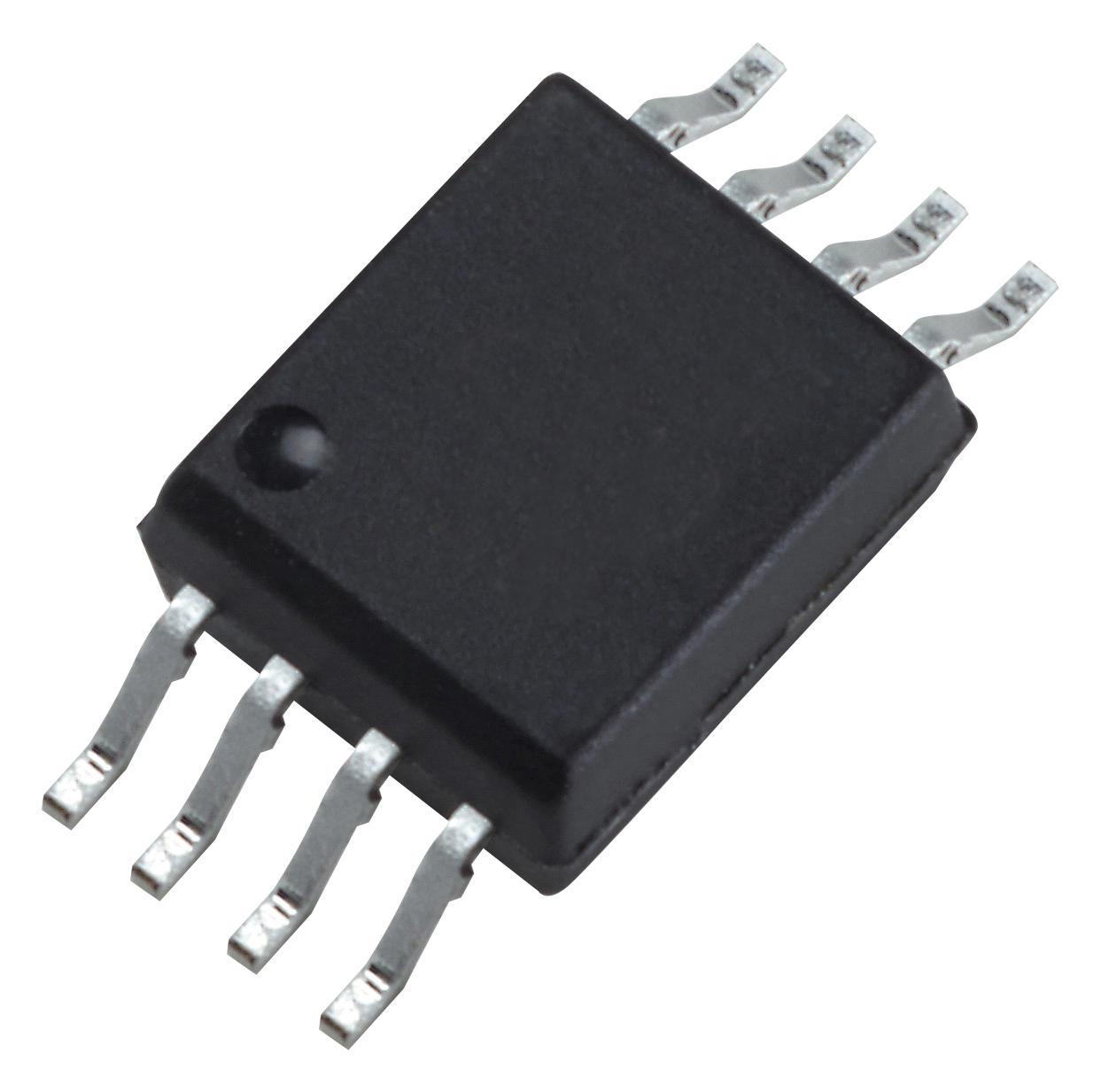

Buy the Buy Avago ACPL-K34T560E Part Number 560E Online
