BROADCOM HSMQC110 High Brightness Chip LED
These compact chip-type LEDs utilize high-efficiency InGaN technology to offer bright, cost-effective blue and green illumination at 470 nm and 520 nm. Suitable for LCD backlighting, push button illumination, and indicators, they come in top, side, and reverse mount packages compatible with IR soldering and light piping. Designed with diffused optics for uniform light, these LEDs feature small form factors, wide viewing angles, and are ideal for microdisplays and signage. Each variant is binned by color and intensity for consistent quality and performance.
BROADCOM HSMQC110 High Brightness Chip LED Specifications:
- Package Dimensions: HSMQ-C110: 3.2 x 1.5 x 1.0 mm, HSMQ-C120: 1.6 x 1.0 x 0.6 mm, HSMQ-C150: 3.2 x 1.6 x 1.1 mm, HSMQ-C170: 2.0 x 1.25 x 0.8 mm, HSMQ-C177: 2.0 x 1.25 x 0.4 mm, HSMQ-C190: 1.6 x 0.8 x 0.8 mm, HSMQ-C191: 1.6 x 0.8 x 0.6 mm, HSMQ-C197: 1.6 x 0.8 x 0.4 mm, HSMQ-C265: 3.7 x 1.45 x 1.3 mm.
- Optical Wavelength: Green 520 nm, Blue 469 nm.
- Luminous Intensity: Green up to 150 med, Blue up to 60 med.
- Peak Wavelength: Green 520 nm, Blue 469 nm.
- Viewing Angle: Approx. 130° for green, 130° for blue.
- Forward Voltage: Typical 3.4 V, Max 3.9 V at 20 mA.
- Reverse Voltage: 5 V.
- Power Dissipation: 78 mW.
- Operating Temperature Range: -40°C to +85°C.
- Storage Temperature Range: -40°C to +85°C.
- Soldering Temperature: Follow reflow profile; max 260°C for 10 seconds.

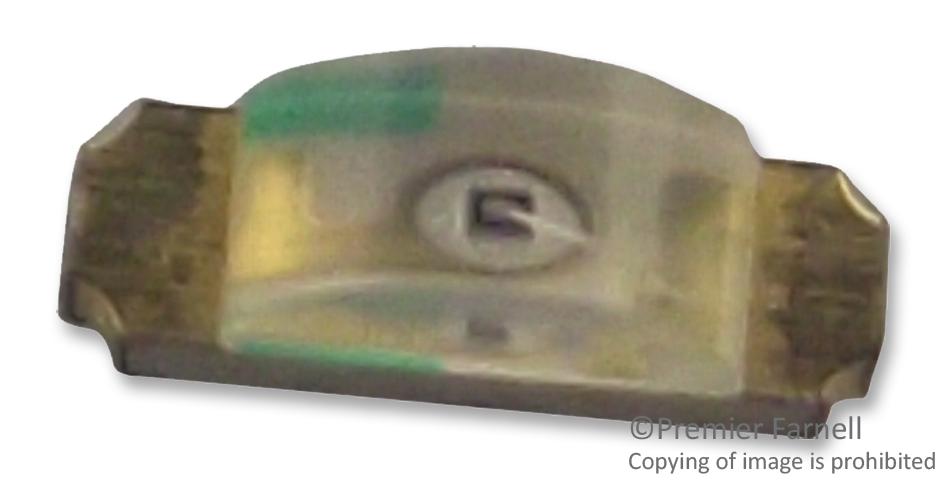

Buy the High Performance Chip LED: HSMQ-C110
Experience superior illumination with the High Brightness Chip LED designed for reliable backlighting, indicators, and microdisplay applications. Featuring InGaN technology, these LEDs offer high efficiency, bright output, and compact design. Compatible with IR soldering and light piping, they are perfect for various electronic projects that demand bright, consistent, and cost-effective lighting solutions. Easy to install with various packages, these LEDs provide uniform diffused optics and broad viewing angles. Purchase online today to enhance your electronic devices with top-quality LED components.
Order your Avago Series C110 high-brightness LED today and give your displays and indicators the dependable quality they deserve.
Frequently Asked Questions
Where can I buy BROADCOM HSMQC110?
You can click on the BUY or RFQ button to purchase HSMQC110 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMQC110?
You can download the HSMQC110 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMQC110?
BROADCOM
