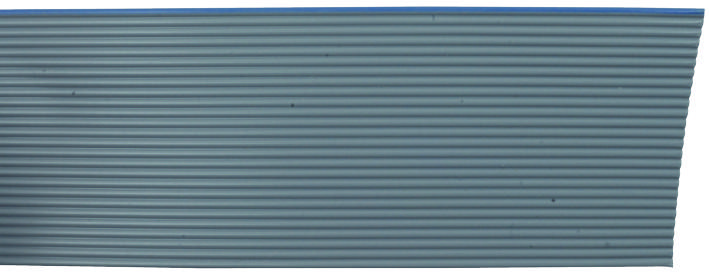

BELDEN 9L26026008H100 Ribbon Cable
This gray ribbon cable by Belden features a .050" pitch, designed for general electronic interconnect applications. It provides reliable mass-termination to standard IDC connectors, ensuring high performance in electronic systems. The cable is unshielded, made of PVC insulation, and rated for temperatures between -40°C to +105°C. It meets UL and CSA standards, is RoHS compliant, and offers a dielectric withstand voltage of 2,000 V RMS. Its flexible, compact design suits a wide range of industrial and electronic projects requiring dependable connectivity.
BELDEN 9L26026008H100 Ribbon Cable Specifications:
- Conductor Spacing: 0.050 inch
- Insulation Material: PVC
- Insulation Resistance: > 10,000 Megaohms
- Overall Nominal Thickness: 0.039 inch
- Overall Width: 1.30 inch
- Operating Temperature Range: -40°C to +105°C
- Bulk Cable Weight: 43 lbs per 1000 ft
- Maximum DC Resistance: 43 Ohms per 1000 ft
- Dielectric Withstand Voltage: 2,000 V RMS
- UL Rating: 105°C, 300 V RMS, VW-1
- CSA Specification: AWM IA
- RoHS and EU directives compliant
- Surface Printing: Polarity marked with blue stripe on #1 conductor
- Applicable Standards: UL, CSA, RoHS, CE, WEEE, Prop 65
- Flame Test: UL VW-1, CSA FT
- Plenum Rating: No
- Max. Operating Voltage: 300 V RMS
- Max. Recommended Current: Based on application
- Shielding: None
Buy the Belden 9L26026 U–2013 Reliable Ribbon Cable for Industrial Applications
Purchase the Belden 9L26026 Gray Ribbon Cable online now for high-quality electronic interconnections. With a .050" pitch, PVC insulation, and RoHS compliance, this unshielded cable guarantees dependable performance across a wide temperature range. Designed for easy mass termination with standard IDC connectors, it meets UL and CSA standards for safety and durability. Ideal for industrial automation, electronic instrumentation, and device manufacturing, this ribbon cable ensures reliable signal transmission and long-term service life, making it an excellent choice for professionals requiring consistent quality and compliance.
Order your Belden 9L26026 ribbon cable today and ensure durable, high-performance interconnects for your electronic projects.
