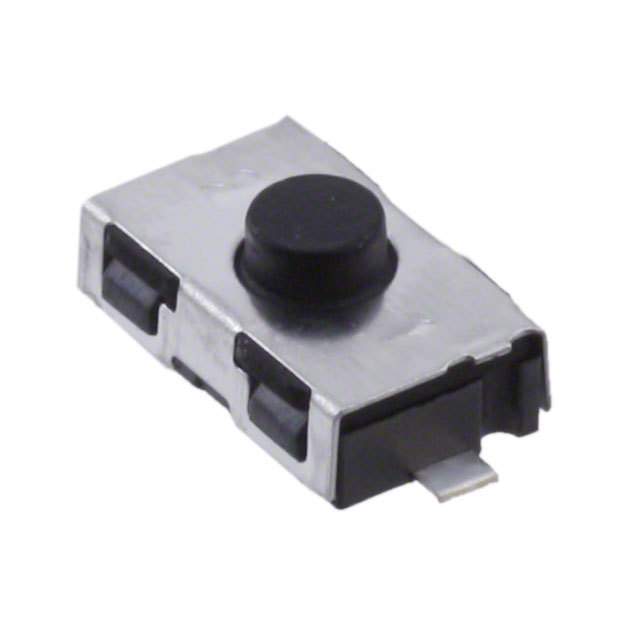

C&K COMPONENTS Y35A25110FPLFS Subminiature Tact Switch
The C&K COMPONENTS Y35A25110FPLFS is a subminiature tact switch engineered for demanding applications. Its compact size and SMT design make it ideal for space-constrained environments. The switch offers momentary action with N.O. and N.C. configurations, catering to diverse circuit requirements. With a robust mechanical design and a wide operating temperature range, it ensures reliable performance in automotive, medical, and industrial electronics. The switch is RoHS compliant, aligning with environmental regulations. Its easy build-a-switch concept allows for customization to meet specific application needs.
C&K COMPONENTS Y35A25110FPLFS Subminiature Tact Switch Specifications:
- function: momentary action
- contact_arrangement: Normally Open
- terminals: Gullwing type for SMT
- operating_force: 1.5-5.6 Newtons
- operating_life: 100,000-200,000 operations
- travel: 0.25-0.5 mm
- overload: 20 Newtons
- contact_resistance: ≤ 100 mΩ
- insulation_resistance: 1G Ω
- bounce_time: 1 ms max
- operating_temperature: -40˚C to 85˚C / -40˚C to 125˚C
- storage_temperature: -55˚C to 85˚C / -55˚C to 125˚C
- maximum_power: 1 VA / 0.2 VA
- maximum_voltage: 32 VDC
- minimum_voltage: 20 mV
- maximum_current_dc: 50 mA / 10 mA
- minimum_current_dc: 1 mA
- ip_rating: IP50 sealed
