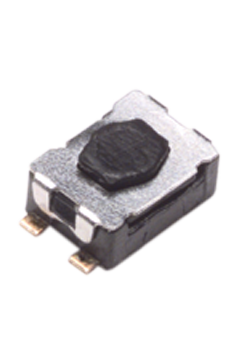

C&K COMPONENTS Y78B22324FP Microminiature Tact Switch
The C&K COMPONENTS Y78B22324FP is a microminiature SMT (Surface Mount Technology) tactile switch designed for space-constrained applications. This switch boasts a small footprint, four different actuation forces, and an excellent tactile feel, providing a positive user experience. It's engineered with ultra-low current capabilities and is suitable for a wide range of industrial and consumer applications, including automotive systems, industrial electronics, and medical equipment. The switch's gullwing terminals are optimized for SMT assembly, ensuring efficient and reliable integration into electronic circuits. It is RoHS compliant and offers a robust solution for momentary action needs.
C&K COMPONENTS Y78B22324FP Microminiature Tact Switch Specifications:
- function: momentary action
- contact_arrangement: 1 make contact = SPST, N.O.
- terminals: Gullwing type for SMT
- actuation_forces: 4 actuation forces
- operating_force: 1.2 (120) ± 0.30 N (grs)
- operating_life: 200,000 cycles
- travel: 0.20 mm ± 0.1
- maximum_power: 1 VA
- maximum_voltage: 32 VDC
- minimum_voltage: 20 mVDC
- maximum_current: 50 mA
- minimum_current: 1 mA
- dielectric_strength: ≥ 250 Vrms
- contact_resistance: ≤ 100 mΩ
- insulation_resistance: ≥ 1GΩ
- bounce_time: ≤ 3 ms
- operating_temperature: -40˚C to 85˚C
- storage_temperature: -55˚C to 85˚C
- tactile_feeling: ≥ 30% (for 2N - 3N - 4N actuation force), ≥ 20% (for 1.2N actuation force)
