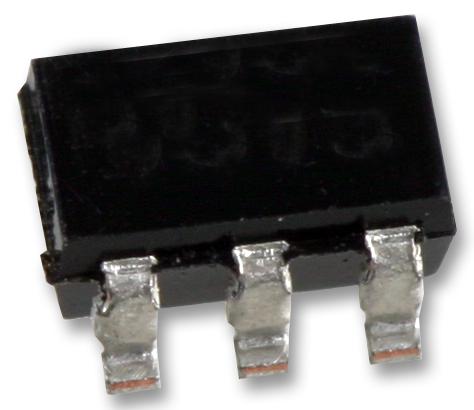

DIODES INC. AP73121828W67 Dual Low Dropout Regulator
The AP7312 is a dual fixed output voltage, low dropout linear regulator delivering 150mA of current with low quiescent current of approximately 60µA. Designed for low power applications, it features low dropout voltage, fast startup time of 60µs, high PSRR of 65dB at 1kHz, and excellent transient response. It includes thermal shutdown, current limit, and short circuit protection. The device operates across a wide input voltage range of 2V to 6V and is available in SOT26 and DFN2018-6 packages, suitable for mobile devices and low power electronics.
DIODES INC. AP73121828W67 Dual Low Dropout Regulator Specifications:
- Input Voltage Range: 2V to 6V
- Output Voltage Options: 1.2V/1.8V, 1.2V/3.3V, 1.5V/2.5V, 1.5V/3.3V, 1.8V/2.8V, 1.8V/3.0V, 1.8V/3.3V, 3.3V/3.3V
- Maximum Output Current: 150mA
- Quiescent Current: approximately 60µA
- Dropout Voltage: 150mV at 150mA load
- High PSRR: 65dB at 1kHz
- Fast Start-up Time: 60µs
- Thermal Shutdown: Yes, at approximately 165°C
- Short Circuit Protection: Yes, clamps current to about 60mA
- Package Types: SOT26, DFN2018-6
- Operating Temperature Range: -40°C to 85°C
- Certified RoHS Compliant: Yes
- ESD Protection: 8kV HBM, 400V MM
Buy the Buy Diodes AP7312 Dual Linear Regulator Part Number AP73121828W67 Online
Order the Diodes AP7312 dual linear regulator now to enjoy reliable low power operation, quick startup, and comprehensive protection features. Designed for mobile phones, smartphones, and other portable electronics, this regulator provides stable voltage with low quiescent current and efficient transient response. Its robust thermal shutdown and current limiting protect your devices from damage. Available in SOT26 and DFN packages, the AP7312 ensures long-lasting performance and energy savings for your low power designs. Purchase online today for fast delivery and expert support.
Get Diodes AP7312 dual linear regulator today—built for low power applications, fast startup, and high efficiency in portable electronic devices.
