DIODES INC. DXTP03060BFG7 High-Temperature PNP Transistor
The DXTP03060BFG is a high-performance PNP low VCESAT transistor housed in the PowerDI3333-8 package. It features a maximum collector-emitter voltage of -60V, a collector-base breakdown of -120V, and a collector-emitter breakdown of -113V, making it suitable for high-temperature and motor driving applications. With a continuous collector current of -5.5A and peak pulse current of -15A, it offers low saturation voltage less than -70mV at -1A and excellent thermal characteristics, operating up to +175°C. Fully RoHS compliant, this green device is designed for line switching and high-density end products.
DIODES INC. DXTP03060BFG7 High-Temperature PNP Transistor Specifications:
- Maximum collector-emitter voltage: -60V
- Maximum collector-base voltage: -120V
- Maximum collector-emitter breakdown: -113V
- Continuous collector current: -5.5A
- Peak pulse current: -15A
- Saturation voltage: < -70mV at -1A
- Operating temperature: -55°C to +175°C
- Power dissipation: 1.07 W, 23 W, 34 W
- Thermal resistance junction to ambient: 140°C/W
- Thermal resistance junction to leads: 6°C/W
- JEDEC ESD Ratings: 4000V (HBM), 2400V (MM)
- Case material: Molded plastic, ROHS, fully green
- Moisture sensitivity level: Level 1
- Lead finish: Matte tin plated, solderable

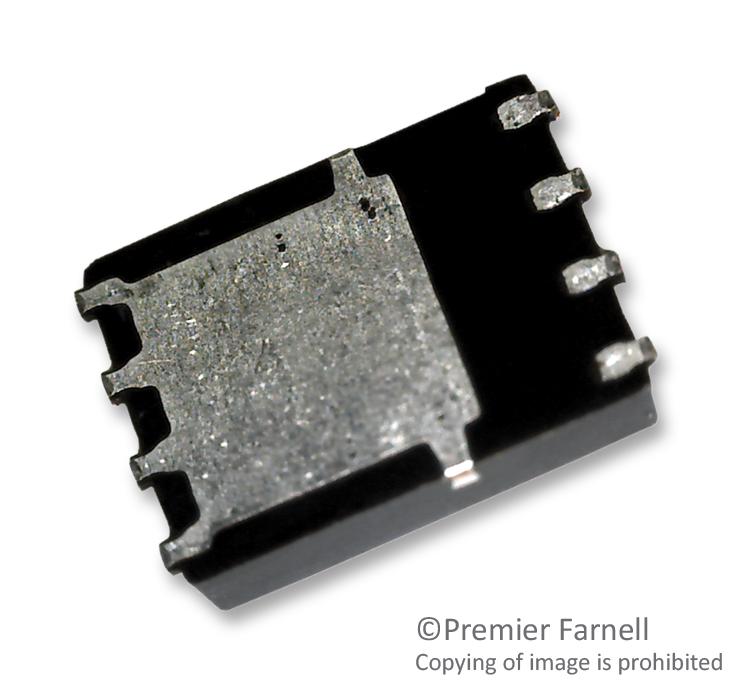

Buy the Diodes Series PowerDI3333-8 PNP Low VCESAT Transistor: DXTP03060BFG
Experience reliable high-temperature operation with the PNP transistor housed in PowerDI3333-8 package. This device offers low saturation voltage, high continuous current capacity, and peak pulse performance, making it ideal for motor drive circuits, line switching, and high-density electronic systems. Fully RoHS compliant and environmentally friendly, it ensures sustainability without compromising performance. Buy online today to equip your electronic projects with a robust, efficient power component designed for demanding industrial and automation applications.
Get Diodes PowerDI3333-8 DXTP03060BFG today—built for high temperature performance, line switching, and maximum durability in demanding environments.
