Harting 17051332203 PCB Connector

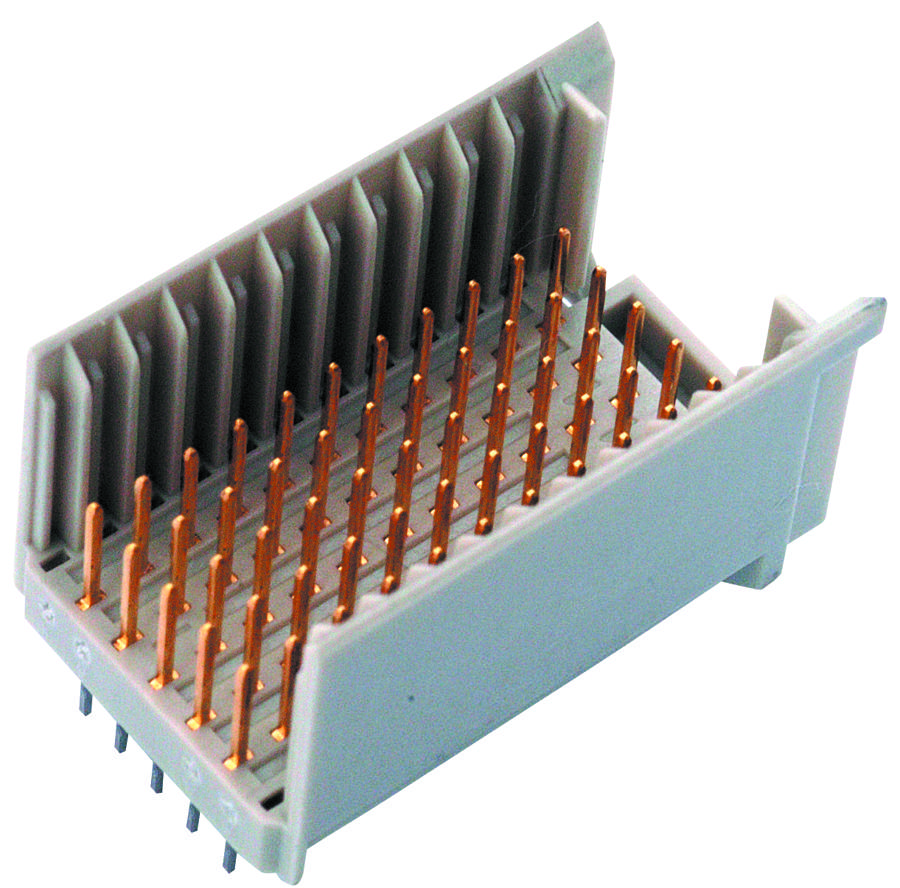

The HARTING har-bus HM male connector is designed for robust PCB connections with plated through holes and high circuit density. It features a copper alloy contact material with nickel and gold plating for corrosion resistance and reliable electrical contact. Suitable for operating temperatures from -55°C to +125°C, it supports up to 250-500 mating cycles, depending on the configuration. The connector complies with IEC 61076-4-101 standards and RoHS regulations, ensuring safety and environmental compliance. Its insulator is made from grey polycarbonate with glass fiber reinforcement, UL 94-VO rated for flame retardancy, making it ideal for industrial automation and control applications.
Harting 17051332203 PCB Connector Specifications:
- No. of contacts: 55 - 220 signal or customized
- Contact spacing: 2.0 mm
- Test voltage: 750 V AC
- Contact resistance: 20 mOhm max
- Insulation resistance: 10^9 Ohm min
- Working current: 1 A at 70°C
- Temperature range: -55°C to +125°C
- Material: Polycarbonate (RAL 7032), glass fiber reinforced
- UL classification: UL 94-VO
- Material group: IEC 60664-1 IIIa (175 < CTI < 400)
- Contact material: Copper alloy with Ni and Au plating, PdNi over Ni
- Plating: Ni press-in zone, Au over PdNi over Ni contact zone
- Mating cycles: 250-500 according to IEC 61076-4-101
- RoHS-compliant: Yes
- Certifications: UL file 102079
Buy the Buy HARTING har-bus HM Part Number 17051332203 Online
Order the HARTING har-bus HM PCB connector online now to benefit from top-quality construction, high circuit density, and reliable performance. Designed with plated through holes, copper alloy contacts, and robust insulator materials, this connector is ideal for demanding industrial automation and control systems. With up to 500 mating cycles, a temperature range from -55°C to +125°C, and UL and RoHS compliance, it ensures safety, durability, and environmental friendliness. Purchase now for quick delivery and experience professional-grade connectivity in your projects.
Get HARTING har-bus HM part number 17051332203 today—built for high circuit density and long-lasting durability.
Frequently Asked Questions
Where can I buy Harting 17051332203?
You can click on the BUY or RFQ button to purchase 17051332203 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 17051332203?
You can download the 17051332203 datasheet or visit the Harting website for support.
Who is the manufacturer of 17051332203?
Harting
