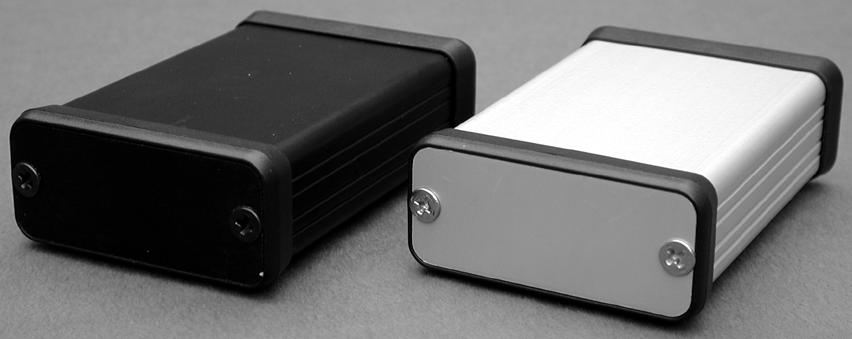

Hammond Manufacturing 1455L1602 PCB Enclosure
The 1455 series enclosures from Hammond are robust extruded aluminum cases with plastic end plates, designed for housing PCB boards or electronic instruments. Crafted from 1.5mm thick aluminum, they guarantee durability and resistance in industrial environments. These enclosures are ideal for hazardous applications and provide easy access for maintenance. They accommodate standard Eurocards by allowing PCBs to slide into internal extruded slots, supporting customization via factory modifications such as milling, drilling, or printing. Available in multiple anodized colors for versatile professional use.
Hammond Manufacturing 1455L1602 PCB Enclosure Specifications:
- Material: Extruded Aluminum 6063
- Thickness: 1.5 mm
- Enclosure Width: 100 mm
- Overall Dimensions: 150 mm x 103 mm x 33.63 mm
- Board Slot Width: 82 mm
- Plastic End Plates: ABS
- Color Options: Clear Anodized, Black Anodized, Blue Anodized, Red Anodized
- Assembly Includes: Box, plastic bezels, #6 taplight screws, self-adhesive rubber feet
- Mounting Hole: 4x G3.50 mm thru, G5.72 mm x 82.0°
- Additional features: Factory modifications available, solid models in STEP or IGES files
- Suitable for: PCB housing, electronic instruments, industrial applications
- Accessories: Available via Hammond's website
Buy the Hammond 1455L1602 – Reliable PCB Enclosure for Industrial Applications
Purchase the Hammond 1455L1602 PCB enclosure online today for a reliable, durable solution ideal for industrial or hazardous environments. Constructed from extruded aluminum with plastic end plates, it offers easy access for maintenance and modifications. Designed for standard Eurocard PCBs, it features extruded slots, factory customization options, and multiple anodized colors. Whether for electronic instrumentation or industrial applications, this enclosure ensures safety, durability, and versatility, providing a professional-grade protective housing for your electronic components and systems.
Order your Hammond 1455L1602 extruded aluminum enclosure today and equip your project with a durable, customizable case ideal for PCB and electronic device housing.
Frequently Asked Questions
Where can I buy Hammond Manufacturing 1455L1602?
You can click on the BUY or RFQ button to purchase 1455L1602 from an authorized Hammond Manufacturing distributor.
How do I troubleshoot issues or seek technical support for part 1455L1602?
You can download the 1455L1602 datasheet or visit the Hammond Manufacturing website for support.
Who is the manufacturer of 1455L1602?
Hammond Manufacturing
