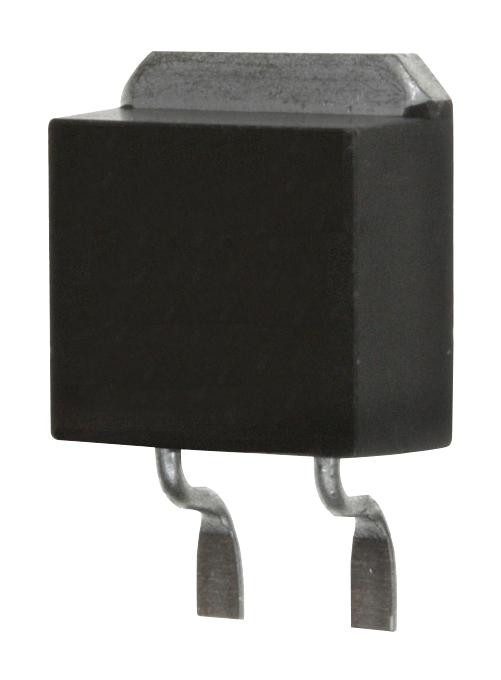

INFINEON AIDK08S65C5ATMA1 Automotive Silicon Carbide Diode
The 5th Generation CoolSiC™ Automotive Schottky Diode delivers high efficiency and reliability for automotive and industrial power applications. Featuring Silicon Carbide technology, it provides benchmark switching behavior with no reverse recovery, high surge current capacity, and a wide junction temperature range from -40°C to 175°C. Designed for high system efficiency, reduced cooling requirements, and increased power density, this diode is ideal for traction inverters, onboard chargers, and DCDC converters, ensuring long-term durability and system reliability.
INFINEON AIDK08S65C5ATMA1 Automotive Silicon Carbide Diode Specifications:
- Repetitive peak reverse voltage: 650 V
- Continuous forward current: 8 A at Tj<126°C
- Surge non-repetitive forward current: 35 A (Tj=25°C), 25 A (Tj=150°C)
- Diode forward voltage: 1.7 V at 8 A, 25°C; 2.1 V at 8 A, 150°C
- Reverse current: 9 μA at 650 V, 150°C
- Maximum junction temperature: -40°C to 175°C
- Power dissipation: 43 W at 25°C
- Thermal resistance junction-case: 2.7 K/W to 3.5 K/W
- Thermal resistance junction-ambient: 62 K/W
- Peak reverse voltage: 650 V
- Peak forward surge current: 364 A
- Di/dt ruggedness: 100 V/ns
- Peak capacitance: 33 pF at 600 V, 1 MHz
- Operating temperature: -40°C to 175°C
- Storage temperature: -55°C to 150°C
- ESD immunity: Human body model 8 kV, charged device 2 kV
- Package: D2PAK in real 2 pins
- RoHS compliant, Pb-free lead plating
Buy the Infineon AIDKO8S65C5 – Reliable Automotive Silicon Carbide Schottky Diode for Industrial Applications
Purchase the Infineon AIDKO8S65C5 Silicon Carbide Automotive Schottky Diode online today. This advanced diode offers low forward voltage, high surge current capability, and excellent thermal stability, making it ideal for automotive power modules, traction inverters, onboard chargers, and high-frequency power supplies. Its compact D2PAK package ensures ease of integration into modern power electronics, enhancing system efficiency and reliability. Enjoy fast delivery, competitive pricing, and authentic products by ordering now to upgrade your power management solutions.
Get Infineon AIDKO8S65C5 today—built for precision, high efficiency, and long-lasting durability in demanding power systems.
Frequently Asked Questions
Where can I buy INFINEON AIDK08S65C5ATMA1?
You can click on the BUY or RFQ button to purchase AIDK08S65C5ATMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part AIDK08S65C5ATMA1?
You can download the AIDK08S65C5ATMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of AIDK08S65C5ATMA1?
INFINEON
