INFINEON BGA123N6E6327XTSA1 GNSS Low Noise Amplifier
The BGA123N6 is an ultra low current, low noise amplifier designed for GNSS applications, operating between 1550 to 1615 MHz. It features superb sensitivity enhancement, consuming only 1.3 mA power, with a wide supply voltage range of 1.1 V to 3.3 V. Its high insertion power gain of 19.0 dB and low noise figure of 0.75 dB improve GNSS signal reception. Manufactured in a compact 0.7x1.1 mm RoHS/WEEE compliant package, it supports all major GNSS systems, ideal for wearables and mobile IoT devices, offering reliable performance.
INFINEON BGA123N6E6327XTSA1 GNSS Low Noise Amplifier Specifications:
- Operation frequencies: 1550 to 1615 MHz
- Supply Voltage Range: 1.1 V to 3.3 V
- Power Consumption: 1.3 mA
- Gain: 19.0 dB
- Noise Figure: 0.75 dB
- Input/Output Return Loss: 12 dB at 1575 MHz
- Reverse Isolation: 25 to 40 dB
- ESD Protection: 2 kV HBM
- Package: TSNP-6-2, footprint: 0.7 x 1.1 mm, height: 0.375 mm
- Supports GPS, GLONASS, Beidou, Galileo
- Operating Temperature Range: -40°C to 85°C
- Maximum Input Power: +25 dBm
- Max Junction Temperature: 150°C

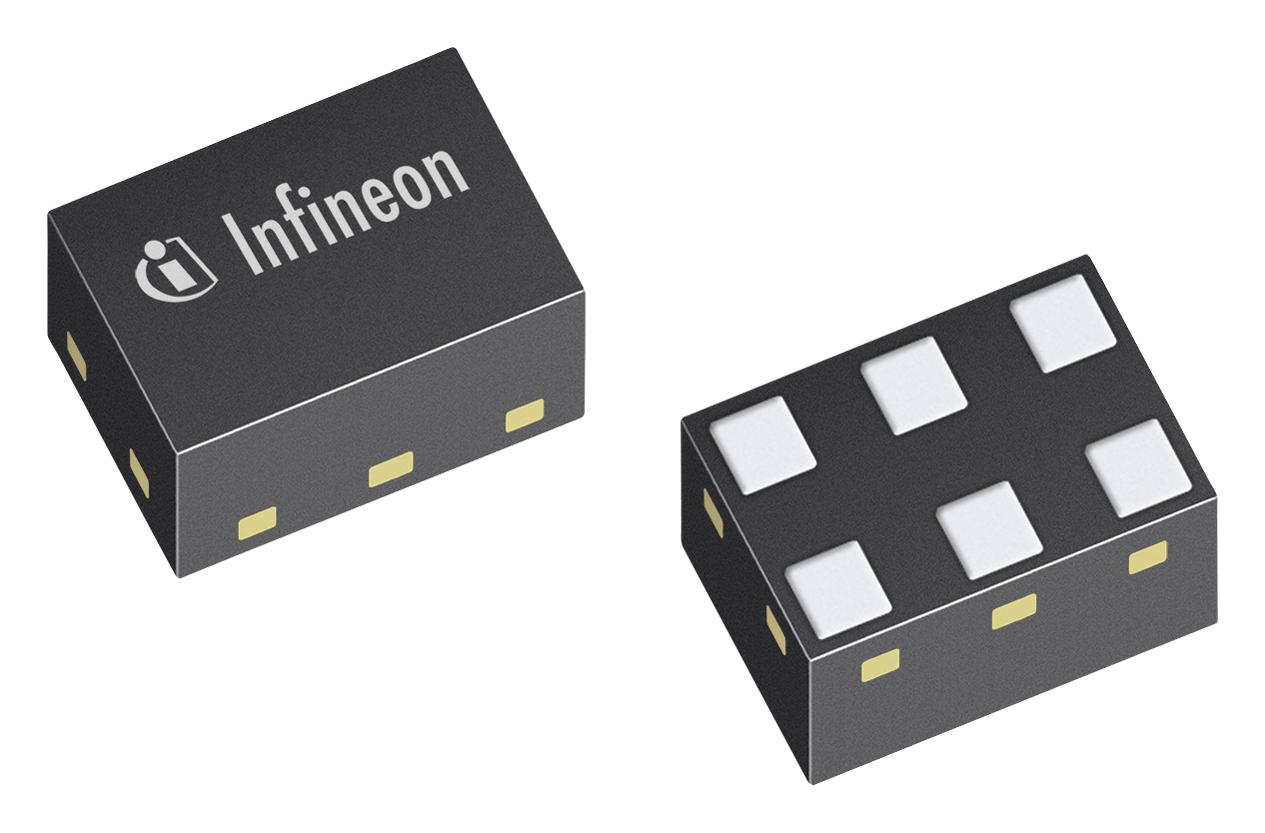

Buy the Buy Infineon BGA123N6 Ultra Low Current Low Noise Amplifier GNSS Part Number BGA123N6E6327XTSA1 Online
Purchase the Infineon BGA123N6 GNSS Low Noise Amplifier online and elevate your device's signal sensitivity. With a low noise figure of 0.75 dB, 19 dB gain, and ultra low power consumption of just 1.3 mA, this compact amplifier is perfect for wearables and mobile IoT applications. Its wide supply voltage range from 1.1 V to 3.3 V ensures broad compatibility, supporting GPS, GLONASS, Beidou, and Galileo. Manufactured in a tiny 0.7x1.1 mm RoHS/WEEE compliant package, it guarantees high performance, reliability, and optimal system sensitivity in demanding conditions.
Buy Infineon BGA123N6 now and experience unmatched reliability and performance in GNSS applications with ultra low power consumption and high sensitivity.
Frequently Asked Questions
Where can I buy INFINEON BGA123N6E6327XTSA1?
You can click on the BUY or RFQ button to purchase BGA123N6E6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BGA123N6E6327XTSA1?
You can download the BGA123N6E6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BGA123N6E6327XTSA1?
INFINEON
