INFINEON ISZ065N03L5SATMA1 Power MOSFET
The Infineon OptiMOS™ Power-MOSFET is a 30 V N-channel device optimized for high-performance Buck converters, such as server and VGA power supplies. It features very low FOM for high-frequency SMPS, excellent gate charge to R o product, and a low on-resistance at Ves=4.5 V. The device offers superior thermal resistance, is Pb-free, halogen-free, and qualified according to JEDEC standards, ensuring reliability in demanding applications while keeping power dissipation and efficiency in check.
INFINEON ISZ065N03L5SATMA1 Power MOSFET Specifications:
- Drain-source voltage Vds: 30 V
- Continuous drain current Id: 40 A at Tc=25°C
- Pulsed drain current Iodpse: 160 A
- Gate threshold voltage Vgs(th): 1.2 - 2 V
- On-resistance Rds(on): 6.5 mΩ at Ves=10 V, 8.6 mΩ at Ves=4.5 V
- Gate source voltage Vgs: -20 V to 20 V
- Junction operating temperature Tj: -55°C to +150°C
- Thermal resistance junction-to-case RθJC: 49 K/W, junction-to-ambient RθJA: 60 K/W
- Avalanche current Ins: 20 A, energy: 16 mJ
- Gate charge total Qg: 5.2 nC, switching charge Qsw: 2.6 nC
- Reverse diode forward current Is: 26 A, pulse 104 A, forward voltage Vf: 0.89 V
- Device package: TSDSON-8 FL, dimensions compliant with industry standards

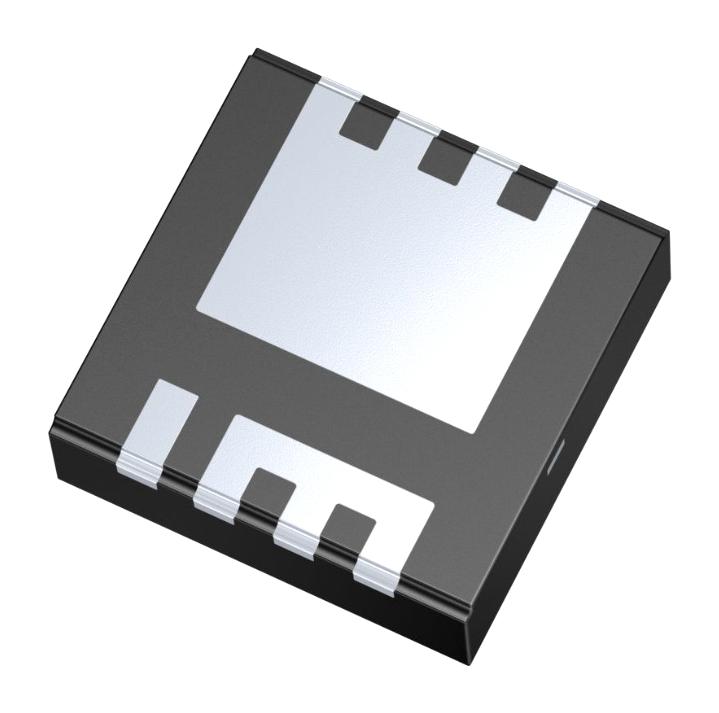

Buy the Buy Infineon OptiMOS Power-MOSFET Part Number ISZ065N03L5S Online
Order the Infineon OptiMOS Power MOSFET online today and enjoy rapid delivery. This 30 V N-channel device delivers low Rds(on), excellent thermal management, and high current capacity suitable for demanding applications including server power supplies, high-frequency SMPS, and industrial automation. Its compact package and RoHS compliance ensure sustainability and ease of integration into your designs. Buy now to enhance your power conversion efficiency with a trusted industry leader in semiconductor technology. Experience reliable performance today.
Buy Infineon OptiMOS power MOSFET part number ISZ065N03L5S now and experience unmatched reliability and high efficiency in high-frequency switching applications.
