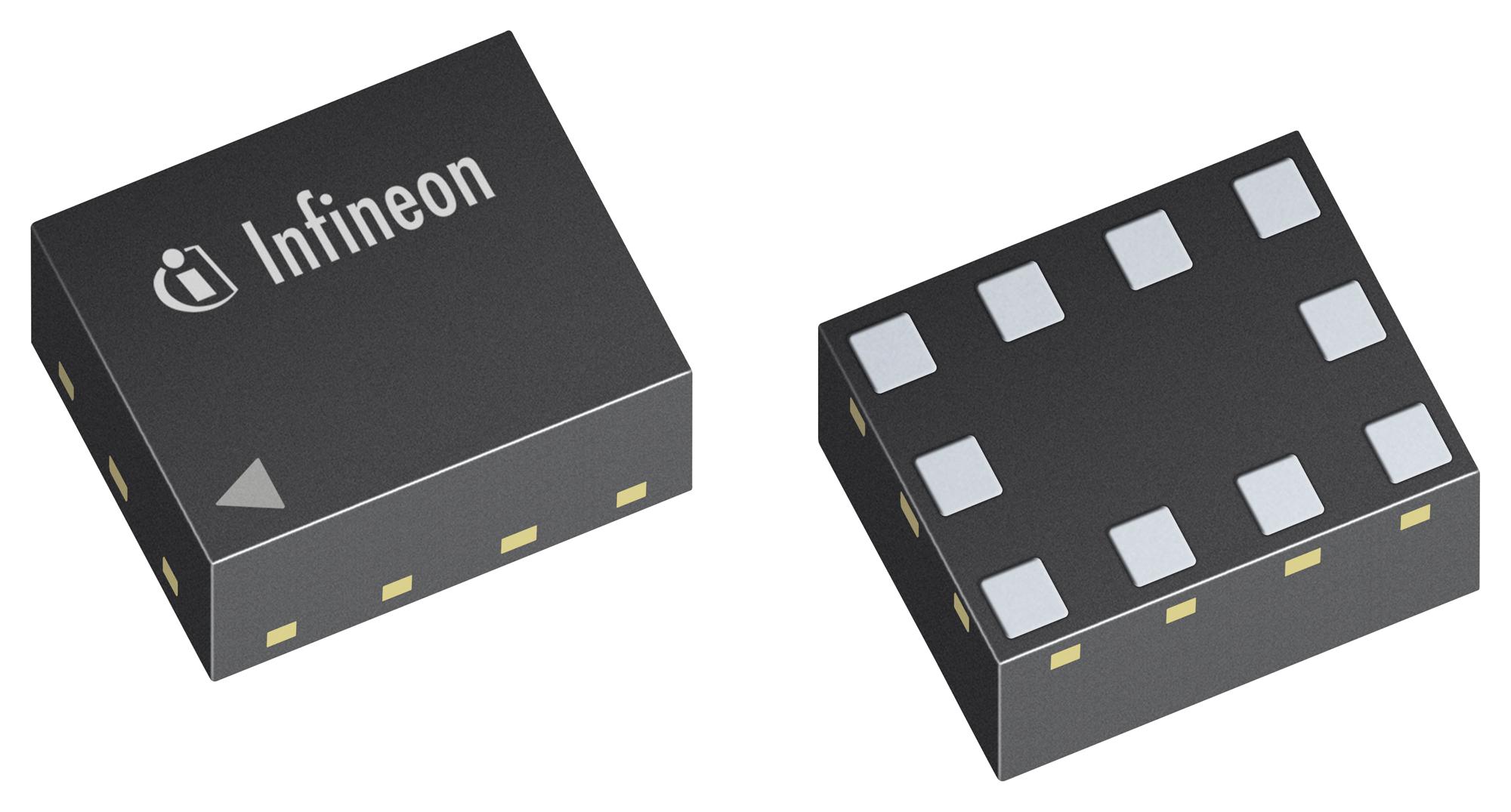

INFINEON BGSA11GN10E6327XTSA1 RF Switch Module
The BGSA11GN10 is a dual SPST RF switch designed for antenna tuning applications, supporting frequencies from 0.1 to 5.0 GHz. It features ultra-low Ron of 0.79 Ω in ON state, and 0.38 Ω when parallel-connected. Its high RF voltage ruggedness allows switching of reactive components without loss of quality. The device operates with a supply voltage of 1.8 to 3.6 V, no external DC blocking capacitors are necessary, and it offers low harmonic generation, making it suitable for LTE, WCDMA, and other RF matching circuits in compact form factors.
INFINEON BGSA11GN10E6327XTSA1 RF Switch Module Specifications:
- Frequency Range: 0.1 - 5.0 GHz
- Supply Voltage: 1.8 - 3.6 V
- Maximum RF Input Power: 39 dBm
- Switch ON Resistance: 0.79 Ω typical, 0.89 Ω max
- Switch OFF Capacitance: 250 fF typical
- Insertion Loss: 0.10 - 0.45 dB depending on frequency
- Isolation: 12 - 36 dB depending on frequency
- Transmission Time: 2 - 7 μs
- Control Voltage: 1.35 - 3.3 V
- Package Size: 1.1 mm x 1.5 mm, 400 μm pitch
- RoHS and WEEE compliant
- Junction Temperature: up to 125°C
- ESD Capability: 8 kV system level, 1 kV HBM, -1.5 to +15 kV CDM
Buy the Infineon Series BGSA11GN10 RF Switch: BGSA11GN10
Order the Infineon BGSA11GN10 RF switch online today to enjoy a high-linearity dual SPST device designed for fast, reliable antenna switching from 0.1 to 5.0 GHz. Its ultra-low Ron of 0.79 Ω and maximum RF voltage of 36 V peak ensure minimal power loss and excellent robustness for LTE, WCDMA, and other RF matching circuits. Compact size (1.1 mm x 1.5 mm) and RoHS compliance make it ideal for space-constrained designs requiring high-frequency performance, reliability, and ease of integration.
Get Infineon BGSA11GN10 today—built for precision, low Ron, and high RF voltage handling in compact antenna tuning applications.
Frequently Asked Questions
Where can I buy INFINEON BGSA11GN10E6327XTSA1?
You can click on the BUY or RFQ button to purchase BGSA11GN10E6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BGSA11GN10E6327XTSA1?
You can download the BGSA11GN10E6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BGSA11GN10E6327XTSA1?
INFINEON
