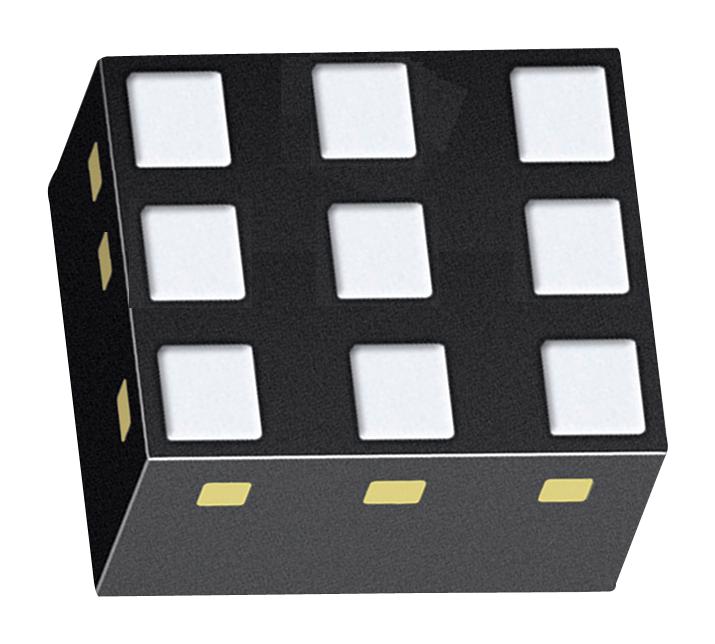

INFINEON BGS13S4N9E6327XTSA1 RF Switch
The BGS13S4N9 RF switch is a compact, high-performance SP3T designed for mobile and cellular applications, supporting frequencies from 0.4 to 3.0 GHz. It features low insertion loss, high port-to-port isolation, and high linearity with power handling of up to 30 dBm. The device integrates CMOS logic with on-chip ESD protection, requiring no decoupling capacitors if no DC is applied to RF ports. Its small size (1.1 x 1.1 mm) and robust design make it ideal for RF switching in smartphones, LTE, WCDMA, and Edge applications. No power supply blocking is necessary, ensuring reliable and efficient operation in compact devices.
INFINEON BGS13S4N9E6327XTSA1 RF Switch Specifications:
- Frequency range: 0.4 - 3.0 GHz
- Insertion loss: 0.10 - 0.25 dB across bands
- Port-to-port isolation: up to 33 dB
- Power handling capability: up to 30 dBm
- Control voltage: 1.35 V to VDD
- Supply voltage: 1.8 V to 3.3 V
- Size: 1.1 mm x 1.1 mm x 0.375 mm
- Package: TSNP-9-3
- RoHS and WEEE compliant
- Supports various cellular standards including LTE, WCDMA, Edge
- No decoupling capacitors required when no DC present on RF lines
- High EMI robustness
Buy the Infineon Series RF Switch: Wideband RF SP3T: BGS13S4N9
Purchase the Infineon BGS13S4N9 RF switch online today and enhance your mobile device's RF performance. This compact, high-linearity switch supports 0.4 to 3 GHz frequencies with low insertion loss and high isolation, ideal for LTE, WCDMA, and Edge applications. Its small size and robust design simplify integration into compact devices while providing reliable operation without decoupling capacitors if no DC is applied. Ensure optimal cellular signal management with this advanced RF switching component. Order now to improve your RF system's efficiency and durability.
Get Infineon BGS13S4N9 today—built for high-frequency precision and long-lasting durability in mobile RF switching applications.
Frequently Asked Questions
Where can I buy INFINEON BGS13S4N9E6327XTSA1?
You can click on the BUY or RFQ button to purchase BGS13S4N9E6327XTSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BGS13S4N9E6327XTSA1?
You can download the BGS13S4N9E6327XTSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BGS13S4N9E6327XTSA1?
INFINEON
