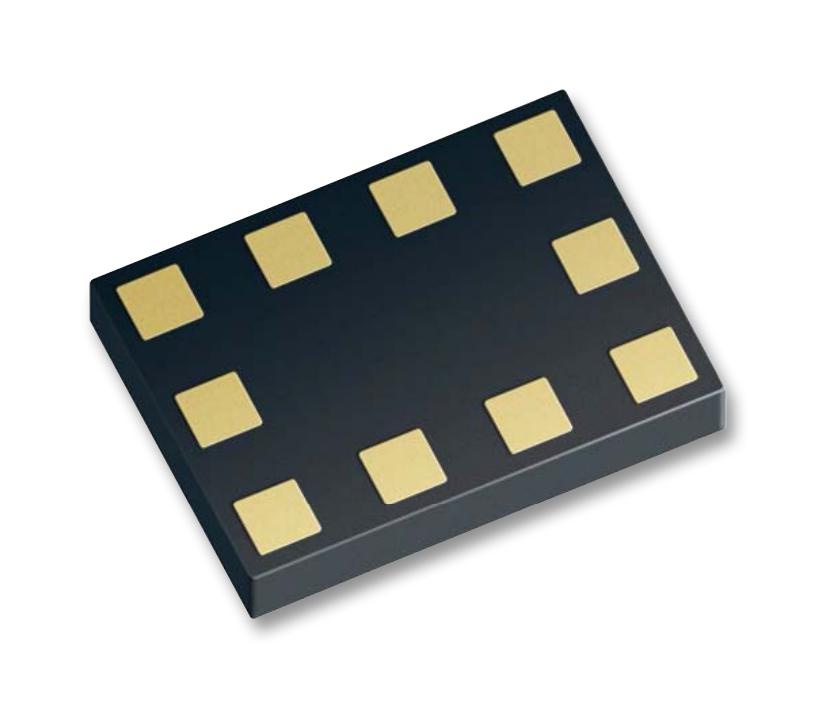

INFINEON BGSA402ML10E6327XTSA1 RF Antenna Tuning Switch
The BGSA402ML10 is a low-resistance RF antenna tuning switch designed for high-linearity switching and RF tuning applications over frequencies up to 6 GHz. It features on-chip CMOS logic and power regulation, supporting multiple switch configurations with a digital control interface compliant with MIPI 2.1 RFFE standards. With ultra-low Ron resistance of 1.49 Ω in ON state and low COFF capacitance of 170 fF in OFF state, it offers high RF voltage handling (>45 V) and excellent linear performance. Its compact 1.1 mm x 1.5 mm RoHS-compliant package makes it ideal for antenna matching and reactive device switching in RF circuits.
INFINEON BGSA402ML10E6327XTSA1 RF Antenna Tuning Switch Specifications:
- Operating Frequency: Up to 6 GHz
- Ron Resistance in ON state: 1.49 Ω
- COFF Capacitance in OFF state: 170 fF
- Supply Voltage Range: 1.65 to 3.6 V
- RF Voltage Handling: >45 V
- Package Size: 1.1 mm x 1.5 mm, RoHS & WEEE compliant
- Control Interface: MIPI 2.1 RFFE compliant
- Programmable USID via USID_Sel pin: Up to 4 states
- Temperature Range: Not specified
- Harmonic Generation: Low
- Operating Conditions: Suitable for reactive device switching, RF matching circuits
Buy the Infineon Series RF Switch: BGSA402ML10
Enhance your RF design with the BGSA402ML10, a high-performance antenna tuning switch supporting up to 6 GHz. Its ultra-low Ron of 1.49 Ω, low COFF of 170 fF, and high RF voltage tolerance over 45 V make it perfect for high-linearity applications. The device features integrated CMOS logic and power regulation, programmable via a MIPI 2.1 RFFE interface, supporting multiple configurations. Its compact form factor of 1.1 mm x 1.5 mm and RoHS compliance ensure easy integration into modern RF modules, facilitating efficient antenna and reactive component switching with minimal losses.
Get Infineon BGSA402ML10 today—built for precision, high linearity, and durable RF switching in antenna tuning applications.
