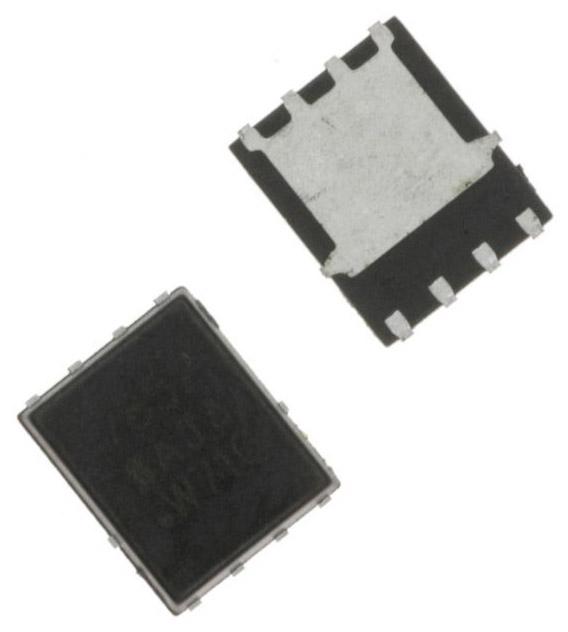

INFINEON BSC0902NSIATMA1 Power MOSFET
The INFINEON BSC0902NSIATMA1 is a robust N-channel Power MOSFET optimized for synchronous rectification in high-performance buck converter applications. Its key features include a very low on-resistance, minimizing power losses, and an integrated Schottky-like diode for improved efficiency. Qualified according to JEDEC standards, this MOSFET is suitable for a wide range of industrial applications requiring efficient power management, such as DC-DC converters, motor drives, and power supplies. It is Pb-free, RoHS compliant, and halogen-free, meeting stringent environmental requirements.
INFINEON BSC0902NSIATMA1 Power MOSFET Specifications:
- Vds: 30 V
- Rds(on), max: 2.8 mΩ
- Id: 100 A
- Qoss: 17 nC
- Qg(0V..10V): 24 nC
- Avalanche current: 50 A
- Avalanche energy: 30 mJ
- Vgs: +/- 20 V
- Continuous drain current: 100 A @ Tc=25°C
- Pulsed drain current: 400 A
- Operating and storage temperature: -55 ... 150 °C
- Thermal resistance, junction - case: 2.6 K/W
- Thermal resistance, junction - ambient: 50 K/W
- Drain-source breakdown voltage: 30 V
- Gate threshold voltage: 1.2 V
- Zero gate voltage drain current: 0.5 mA
- Gate-source leakage current: 100 nA
- Input capacitance: 1500-1995 pF
- Output capacitance: 630 pF
- Forward transconductance: 50 S
Buy the BSC0902NSIATMA1 INFINEON Power MOSFET | myMectronic
Purchase the INFINEON BSC0902NSIATMA1 Power MOSFET securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy INFINEON BSC0902NSIATMA1?
You can click on the BUY or RFQ button to purchase BSC0902NSIATMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part BSC0902NSIATMA1?
You can download the BSC0902NSIATMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of BSC0902NSIATMA1?
INFINEON
