INFINEON IKY50N120CH3XKSA1 High-Speed Power IGBT
The IKY50N120CH3 is a high-speed third-generation IGBT designed for industrial applications such as UPS, chargers, energy storage, and solar inverters. It features ultra-low switching losses due to Kelvin emitter pin technology and high-speed H3 technology, ensuring high efficiency during hard switching and resonant operations. The device offers short circuit withstand time of 10 microseconds at Tj=175°C, low EMI, and low gate charge, with a maximum junction temperature of 175°C. Qualified according to JEDEC standards, it provides reliable performance for demanding power electronics environments.
INFINEON IKY50N120CH3XKSA1 High-Speed Power IGBT Specifications:
- Vee: 1200V
- Ic: 50A
- Veesat: 2V at 25°C
- Vce: max 2.5V at 25°C
- Power Dissipation: 652W at 25°C
- Junction Temperature: -40°C to +175°C
- Short Circuit Time: 10µs at Tj=175°C
- Gate-Emitter Voltage: +20V (max), +30V transient
- Diode Forward Voltage: 1.85V - 1.90V at 175°C
- Thermal Resistance: Junction to case 0.23K/W, junction to ambient 40K/W
- Package: PG-TO247-4-2
- RoHS compliant, Pb-free lead plating
- Qualified per JEDEC47/20/22 standards
- Features: Soft recovery diode, low EMI, positive temperature coefficient, high efficiency

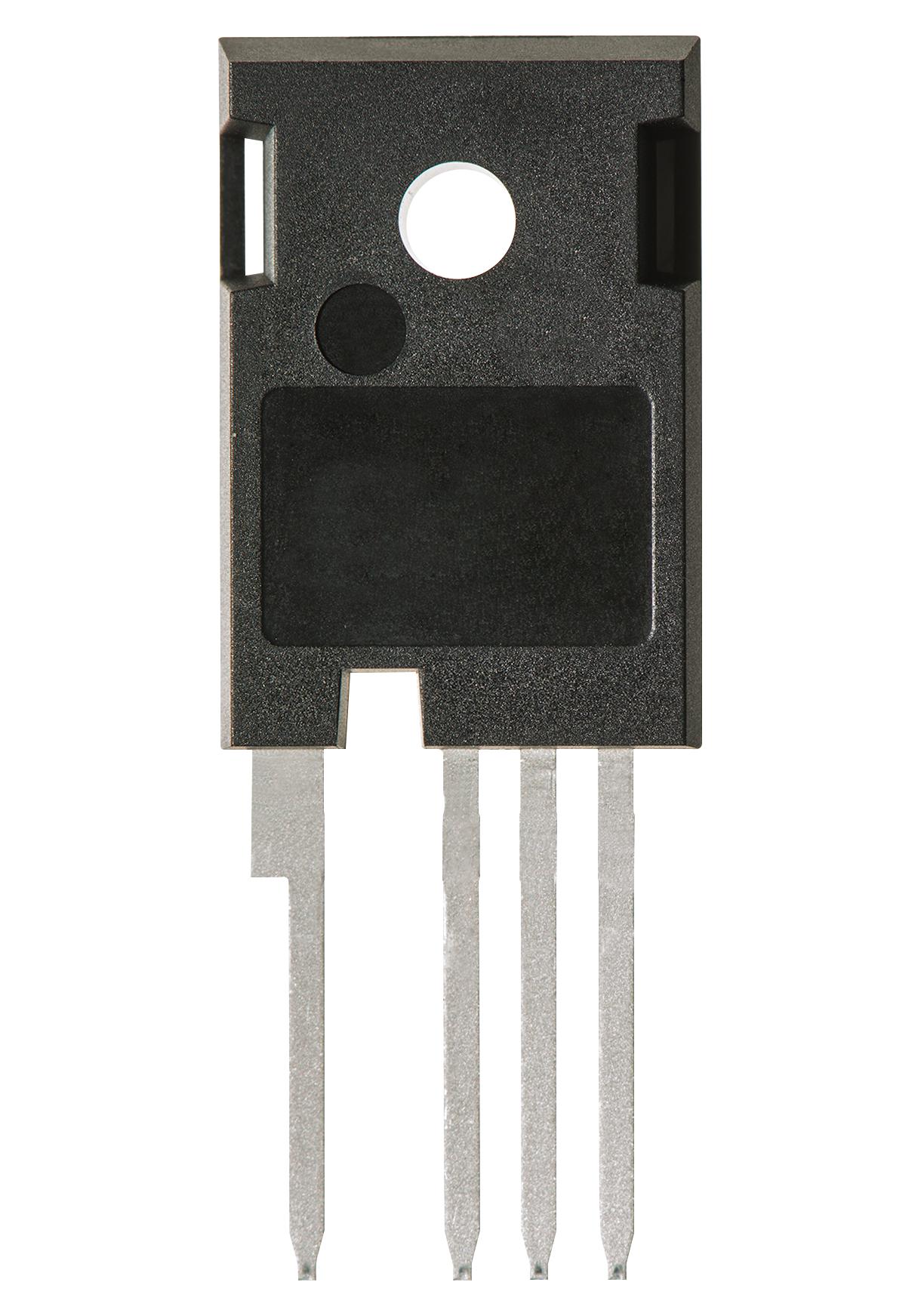

Buy the Buy Infineon IGBT Part Number IKY50N120CH3XKSA1 Online
Enhance your power electronics with the Infineon IKY50N120CH3 XKSA1 high-speed IGBT, designed for industrial UPS, solar, chargers, and energy storage. It features ultra-low switching losses, short circuit withstand time of 10 microseconds at 175°C, and low EMI for optimal performance. Its rugged construction ensures reliable operation under demanding conditions, with a maximum junction temperature of 175°C. Ideal for high-efficiency resonant and hard switching topologies, this RoHS-compliant device offers excellent thermal performance, a strong safety margin, and convenient paralleling capabilities. Order online today to upgrade your power system with this durable, advanced IGBT.
Get Infineon IKY50N120CH3XKSA1 today—built for high-speed switching, low losses, and reliable industrial power control.
Frequently Asked Questions
Where can I buy INFINEON IKY50N120CH3XKSA1?
You can click on the BUY or RFQ button to purchase IKY50N120CH3XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKY50N120CH3XKSA1?
You can download the IKY50N120CH3XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKY50N120CH3XKSA1?
INFINEON
