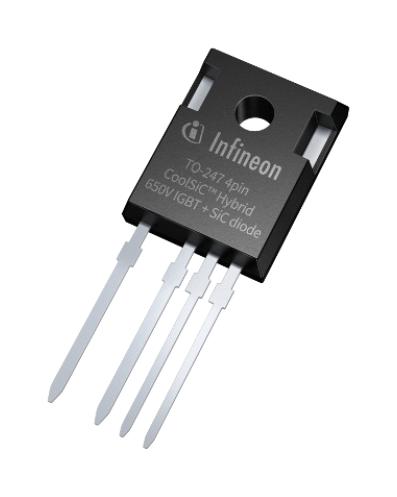

INFINEON IKZA50N65SS5XKSA1 Hybrid CoolSiC IGBT
The hybrid CoolSiC IGBT combines advanced Trenchstop 5 technology with CoolSiC Schottky barrier diode for ultra-low switching and conduction losses, high efficiency, and simplified PCB design. Suitable for industrial power supplies, energy generation, and infrastructure applications, it operates at maximum junction temperatures of 175°C with a collector-emitter voltage of 650V and collector current up to 80A. Its optimized pin-out and RoHS compliance make it a reliable choice for high-performance power conversion systems, qualified according to JEDEC standards for critical applications.
INFINEON IKZA50N65SS5XKSA1 Hybrid CoolSiC IGBT Specifications:
- Collector-emitter voltage: 650 V
- Collector current (at 25°C): 80 A
- Pulsed collector current: 200 A
- Maximum junction temperature: 175°C
- Diode forward current: 57.5 A
- Power dissipation (at 25°C): 274 W
- Thermal resistance junction-case: 0.55 K/W
- Thermal resistance junction-ambient: 40 K/W
- Gate-emitter voltage: +20 V (absolute max), transient +30 V
- Operating temperature range: -40°C to +175°C
- Soldering temperature: 260°C for 10s
- Mounting torque for M3 screw: 0.6 Nm
- RoHS compliant, Pb-free plating
- Qualifies per JEDEC standards
Buy the Cinfineon Series Hybrid CoolSiC IGBT: IKZA50N65SS5XKSA1
Enhance your power systems with Cinfineon hybrid CoolSiC IGBT, offering ultra-low switching and conduction losses, high voltage and current ratings, and JEDEC qualification for demanding industrial, energy, and infrastructure applications. With a maximum junction temperature of 175°C and RoHS compliance, this module provides reliable performance and simplified PCB design. Optimized for energy generation, industrial power supplies, and energy storage solutions, it ensures efficiency and durability, making it the ideal choice for advanced power conversion systems.
Buy Cinfineon hybrid CoolSiC IGBT now and experience unmatched efficiency and reliability in power switching applications.
Frequently Asked Questions
Where can I buy INFINEON IKZA50N65SS5XKSA1?
You can click on the BUY or RFQ button to purchase IKZA50N65SS5XKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKZA50N65SS5XKSA1?
You can download the IKZA50N65SS5XKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKZA50N65SS5XKSA1?
INFINEON
