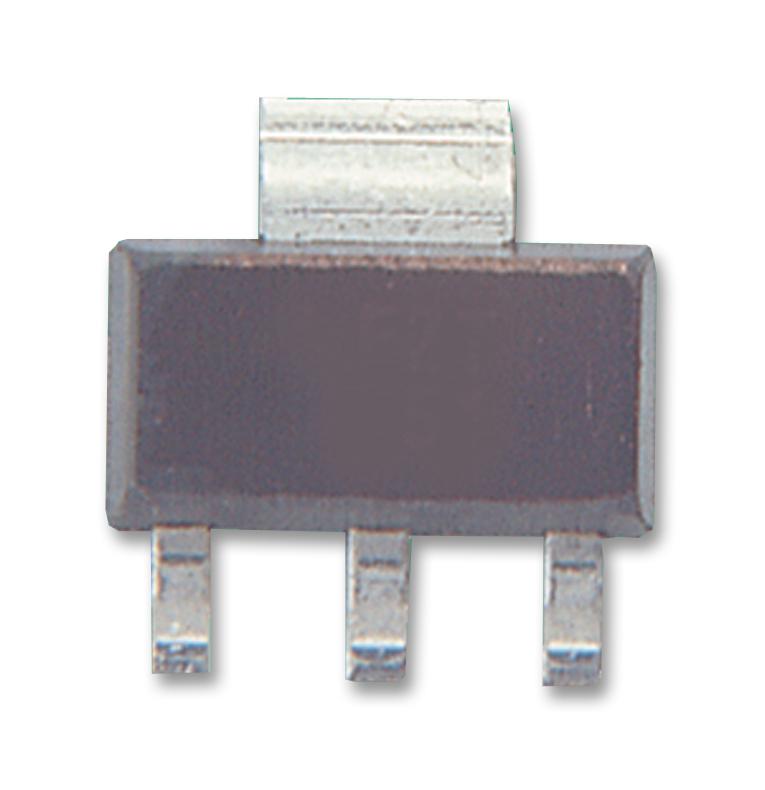

INFINEON IPN60R360P7SATMA1 High-Voltage Power Transistor
The 600V CoolMOS™ P7 Power Transistor is a high-performance, superjunction MOSFET designed for efficient hard and soft switching applications like PFC, LLC, and resonant switching stages. It offers excellent ease of use with very low ringing, outstanding robustness of its body diode, and high ESD robustness over 2kV. Its extremely low switching and conduction losses enable more compact, cooler, and energy-efficient power solutions suitable for power supplies, adapters, servers, and telecom systems. This transistor supports high power density and simplified thermal management for demanding industrial and consumer applications.
INFINEON IPN60R360P7SATMA1 High-Voltage Power Transistor Specifications:
- Maximum drain-source voltage: 600 V
- Continuous drain current: 2 A
- Pulsed drain current: 26 A
- Avalanche energy: 27 mJ (single pulse)
- Avalanche energy: 0.14 mJ (repetitive)
- Gate threshold voltage: 3 to 4 V
- On-state resistance Rds(on): 0.702 Ω
- Temperature rating: -40°C to +150°C
- Power dissipation: 7 W
- Junction-to-ambient thermal resistance: 160 °C/W
- Insulation withstand voltage: specified in datasheet
- Gate charge: total 13 nC
- Reverse diode forward voltage: 0.9 V
- Diode reverse recovery time: 145 ns
- Maximum switching speed: 900 A/μs
Buy the Buy Infineon CoolMOS P7 Part Number IPN60R360P7 Online
Order the Infineon CoolMOS P7 Power Transistor online today for reliable, high-performance switching in industrial, telecom, and consumer electronics. This 600V, low-loss MOSFET offers excellent robustness, low ringing, and energy-efficient operation, making it ideal for PFC, LLC, and resonant switching stages. Its superior ESD robustness over 2kV and compact package design support high power density solutions. Fast delivery ensures you get this advanced, durable component quickly for your demanding power conversion and management projects. Enhance your systems with this industry-leading transistor today.
Get Infineon CoolMOS P7 power transistor today—built for high efficiency, robustness, and long-lasting durability in demanding power switching applications.
Frequently Asked Questions
Where can I buy INFINEON IPN60R360P7SATMA1?
You can click on the BUY or RFQ button to purchase IPN60R360P7SATMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPN60R360P7SATMA1?
You can download the IPN60R360P7SATMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPN60R360P7SATMA1?
INFINEON
