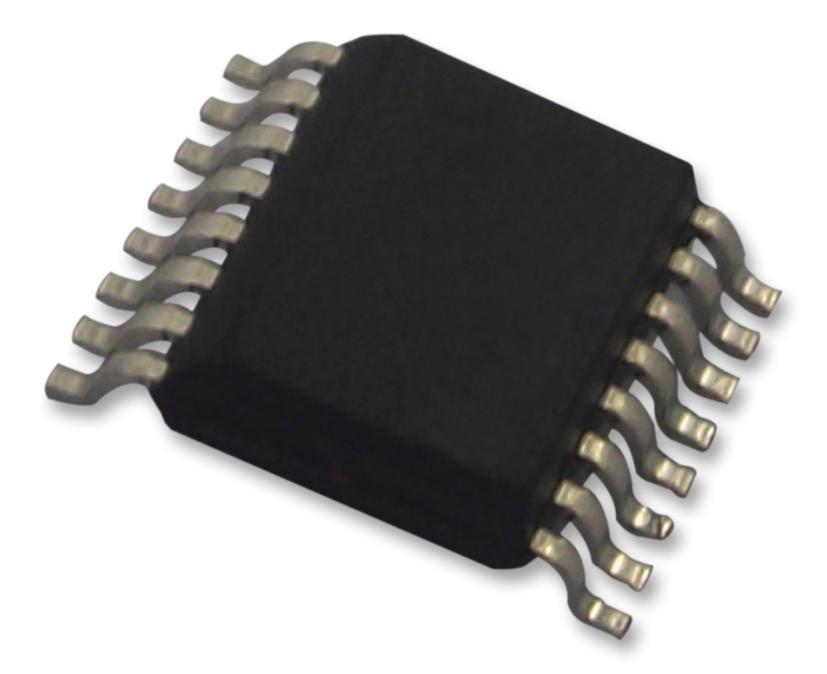

INFINEON TLE5109A16E1210XUMA1 Angle Sensor
The TLE5x09A16(D) is an advanced analog angle sensor utilizing AMR and GMR technology for precise contactless measurement of magnetic field orientation. It features single and dual die configurations, separate supply pins for top and bottom sensors, low power consumption, and fast startup. The sensor provides high accuracy (typically 0.1° for AMR variants), with analog sine and cosine outputs for 180° or 360° angles, respectively. Designed for automotive and industrial applications, it includes built-in temperature compensation, safety features, and is qualified according to AEC-Q100 standards for safety-critical systems such as electric motors, steering sensors, and actuators.
INFINEON TLE5109A16E1210XUMA1 Angle Sensor Specifications:
- Supply voltage: 3.3V to 5.5V
- Operating temperature range: -40°C to 125°C
- Magnetic induction: 24 to 60 mT (GMR), 20 mT (AMR)
- Angle range: 0° to 360° (GMR), 0° to 180° (AMR)
- Angle error offset: ±3° (package), ±12° (GMR non-orthogonality)
- Output noise: 5 mV RMS
- Angle delay time: 9 μs
- Power consumption: 6 to 10.5 mA (AMR), 7 to 10.5 mA (GMR)
- Qualification: AEC-Q100 Grade 1, ISO 26262 ready
- Package: PG-TDSO-16, lead-free, green SMD
- Diversity in sensor technology: contactless, magnetic field sensing
- Error diagnosis: internal error detection via Vpi,¢ pin, partial diagnostics with pull-down resistors
- ESD protection: ±4 kV (HBM), ±0.75 kV (CDM)
- EMC compliance: conforming to IEC standards
- Mounting: surface-mount, sensitive area centered, alignment tolerance ±3°
Buy the Infineon Series TLE5x09 Angle Sensors: TLE5109A16E1210XUMA1
Purchase the Infineon TLE5109A16E1210XUMA1 online today and enhance your system with a high-precision, automotive-qualified contactless angle sensor. Using advanced AMR and GMR technologies, this sensor provides accurate sine and cosine outputs over a wide temperature range. Its dual-die configuration offers redundancy, making it ideal for safety-critical applications such as electric motors, steering angle sensing, and actuators. With proven reliability, fast response, and low power consumption, buying online guarantees quick delivery and expert support to meet your high-speed angular measurement needs.
Buy Infineon TLE5109A16E1210XUMA1 now and experience unmatched reliability and performance in precise angle measurement for safety-critical systems.
Frequently Asked Questions
Where can I buy INFINEON TLE5109A16E1210XUMA1?
You can click on the BUY or RFQ button to purchase TLE5109A16E1210XUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part TLE5109A16E1210XUMA1?
You can download the TLE5109A16E1210XUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of TLE5109A16E1210XUMA1?
INFINEON
