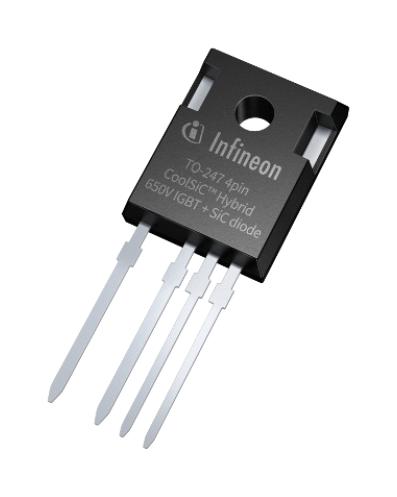

INFINEON IKZA75N65RH5XKSA1 Hybrid CoolSiC IGBT
The Hybrid CoolSiC™ IGBT combines Trenchstop 5 technology with CoolSiC™ Schottky barrier diode for ultra-low switching losses and high efficiency in power conversion. Its plug-and-play silicon replacement simplifies PCB design, supports high junction temperatures up to 175°C, and is qualified per JEDEC standards. Ideal for industrial power supplies, solar inverters, energy storage, and charging infrastructure, it features a compact four-pin package, Kelvin emitter pin, and enhanced wave soldering quality for reliable operation in demanding applications. It delivers robust electrical performance with low saturation voltage and dynamic switching characteristics.
INFINEON IKZA75N65RH5XKSA1 Hybrid CoolSiC IGBT Specifications:
- Collector-Emitter Voltage: 650 V
- Collector Current: 75 A (steady state), 300 A (pulsed)
- Gate-Emitter Voltage: +20 V (max), Transient +30 V
- Junction Temperature: -40°C to +175°C
- Power Dissipation: 395 W at 25°C, 198 W at 100°C
- Thermal Resistance Junction-Case: 0.38 K/W, Junction-Ambient: 40 K/W
- Gate Charge: 168 nC
- Capacitances: Cies 4000 pF, Coes 460 pF, Cres 15 pF
- Switching Energy: e.g., 0.61 mJ (typ) at 25°C, 0.19 mJ (typ) at 150°C
- Transition times: Turn-on delay 25 ns, Turn-off delay 180 ns (25°C), Rise and fall times approximately 8–35 ns
- Package: PG-T0247-4-3, exposed die pad, four-pin configuration, lead-free and RoHS compliant
- Soldering Temperature: 260°C for wave soldering (10s)
- Mounting Torque: 0.6 Nm (M3 screw)
- Maximum Junction Temperature: 175°C, Storage -55°C to +150°C
Buy the Buy Infineon Hybrid CoolSiC IGBT Part Number IKZA75N65RH5XKSA1 Online
Discover the high-efficiency Hybrid CoolSiC IGBT designed for industrial, solar, and energy storage applications. This advanced device offers ultra-low switching losses, high junction temperature capability, and robust electrical specifications, ensuring excellent performance and durability in demanding power electronics systems. Its plug-and-play silicon replacement and compact four-pin package with Kelvin emitter pin simplify integration and PCB design. Invest online today to enhance your energy projects with proven quality and reliable operation.
Buy Infineon IKZA75N65RH5XKSA1 now and experience unmatched reliability and energy-efficient performance in power conversion.
