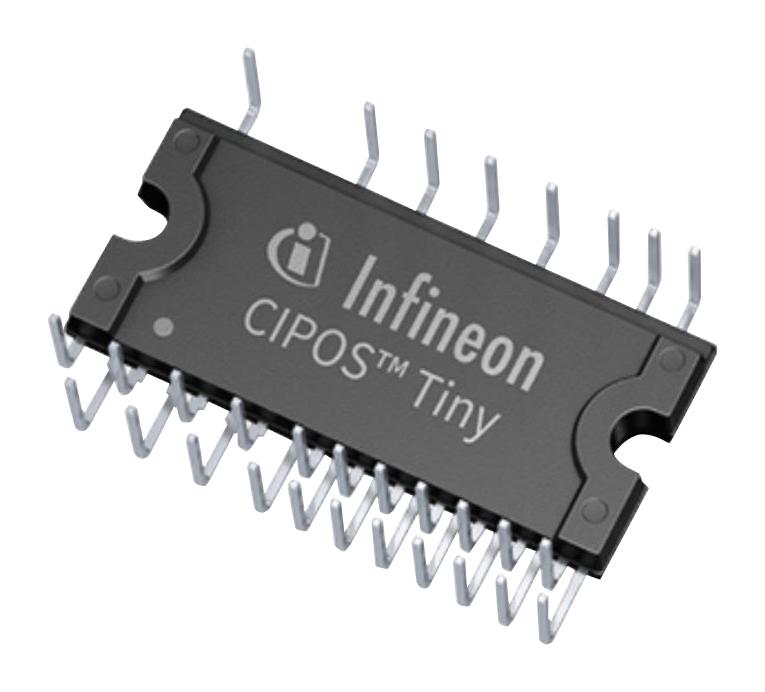

INFINEON IM393S6E3XKLA1 Power Hybrid IC
The IM393-S6E is a compact 6A, 600V Integrated Power Hybrid IC designed for advanced appliance motor drives such as energy-efficient fans, pumps, washing machines, and refrigerators. It combines low VCE(on) trench IGBT technology with industry-leading high-speed gate drivers in an isolated package, offering built-in protection features like temperature monitoring, over-current shutdown, and under-voltage lockout. Its thermal enhancement, UL recognition, and qualification for industrial use ensure high reliability and ease of integration into various automation and control systems.
INFINEON IM393S6E3XKLA1 Power Hybrid IC Specifications:
- Operating Junction Temperature: -40°C to 150°C
- Storage Temperature: -40°C to 125°C
- Isolation Test Voltage: 2000 V RMS for 1 minute
- Blocking Voltage: 600 V
- DC-Link Supply Voltage of P-N: 450 V
- Peak Output Current: 9 A
- Output Current at 25°C: 6 A
- Power Dissipation per IGBT: 18 W
- Thermal Resistance (Junction to Case): 5.8°C/W (W-phase IGBT), 6.6°C/W (diode)
- Control Supply Voltage (VDD): 13.5V to 16.5V
- Logic Input Voltage: 0-5V
- PWM Frequency Range: Up to 20 kHz
- VCE(on): Typical 1.95V at Ic=3A, 25°C
- Built-in Temperature Monitor and Over-current Protection
- Recognized by UL (File Number E314539), RoHS Compliant
- Compliance with JEDEC47/20/22 for industrial applications
Buy the Infineon IM393S6E – Reliable Power Hybrid IC for Appliance Motor Drives
Experience the high performance and reliability of the Infineon IM393-S6E power hybrid IC, perfect for energy-efficient appliance motor drives. This compact 600V, 6A device integrates low VCE(on) trench IGBT technology with industry-leading gate drivers, offering advanced protection features, thermal management, UL recognition, and qualification for industrial use. Easy to incorporate into various control systems, it ensures robust operation, safety, and energy savings. Purchase online today to enhance your appliance designs with Infineon's proven power module technology, ensuring durability and superior performance.
Get Infineon IM393-S6E today—built for precision, compact design, and long-lasting durability.
Frequently Asked Questions
Where can I buy INFINEON IM393S6E3XKLA1?
You can click on the BUY or RFQ button to purchase IM393S6E3XKLA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IM393S6E3XKLA1?
You can download the IM393S6E3XKLA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IM393S6E3XKLA1?
INFINEON
