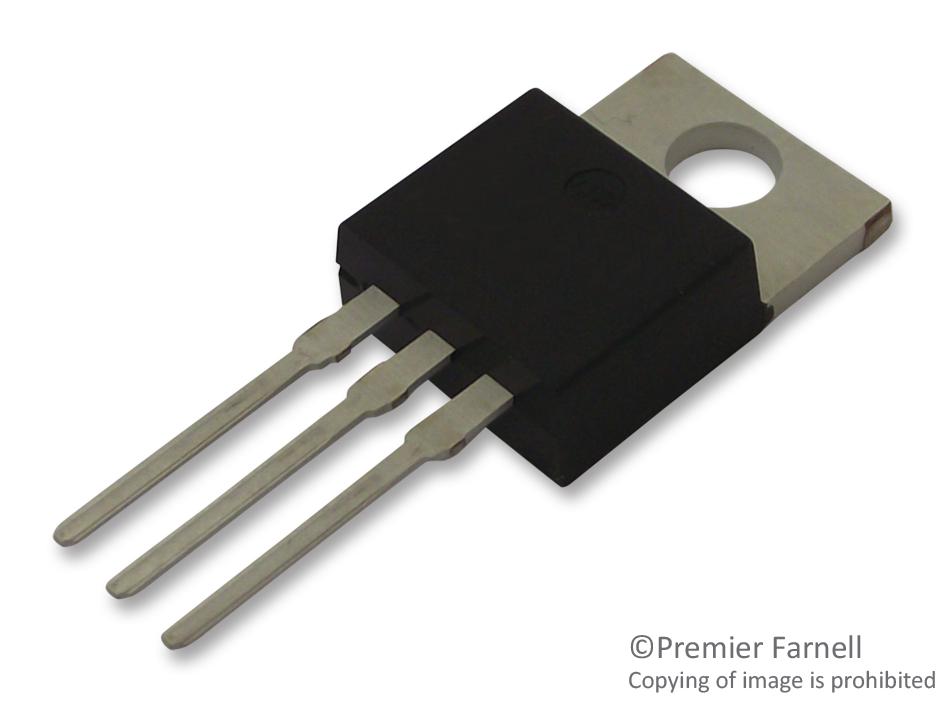

INFINEON IPP129N10NF2SAKMA1 Power MOSFET
The StrongIRFET 2 Power-Transistor is a high-performance N-Channel MOSFET optimized for various industrial power switching applications. It features a drain-source voltage of 100 V, a continuous drain current of 52 A, and ultra-low gate charge, making it suitable for fast switching. The device is 100% avalanche tested, RoHS compliant, halogen-free, and qualified under JEDEC standards. Its design ensures high efficiency and reliability in demanding environments such as motor drives, power supplies, and automation systems, with low on-resistance and excellent thermal characteristics.
INFINEON IPP129N10NF2SAKMA1 Power MOSFET Specifications:
- Drain-source voltage: 100 V
- Continuous drain current: 52 A
- Pulsed drain current: 208 A
- Power dissipation: 3.8 W
- Gate threshold voltage: 2.2 to 3.8 V
- Gate-source voltage: ±20 V
- Drain-source on-resistance: 16.2 mΩ typical at 6 V, 15 A
- Avalanche energy: 30 mJ
- Operating temperature range: -55°C to 175°C
- Thermal resistance, junction-case: 21 °C/W
- Thermal resistance, junction-ambient: 40-62 °C/W
- Package: PG-TO220-3
- RoHS compliant, halogen-free
- Qualified per JEDEC standards
- Gate charge: 19 to 28 nC
- Reverse recovery charge: 46.3 nC
- Maximum gate voltage: ±20 V
Buy the Infineon IPP129N10NF2S – Reliable MOSFET for Industrial Applications
Purchase the Infineon Power MOSFET online now and benefit from its high voltage handling, low on-resistance, and excellent thermal performance. Engineered for demanding industrial environments, this device delivers reliable switching with high pulsed current capacity and minimal energy losses. Its avalanche tested design ensures trustworthiness in power switching applications like motor drives, power supplies, and automation systems. Shop online today to get this robust, RoHS-compliant transistor delivered fast for seamless integration into your electronic projects.
Order your Infineon Series IPP129N10NF2S power transistor today and ensure high efficiency and dependable performance for your industrial projects.
Frequently Asked Questions
Where can I buy INFINEON IPP129N10NF2SAKMA1?
You can click on the BUY or RFQ button to purchase IPP129N10NF2SAKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPP129N10NF2SAKMA1?
You can download the IPP129N10NF2SAKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPP129N10NF2SAKMA1?
INFINEON
