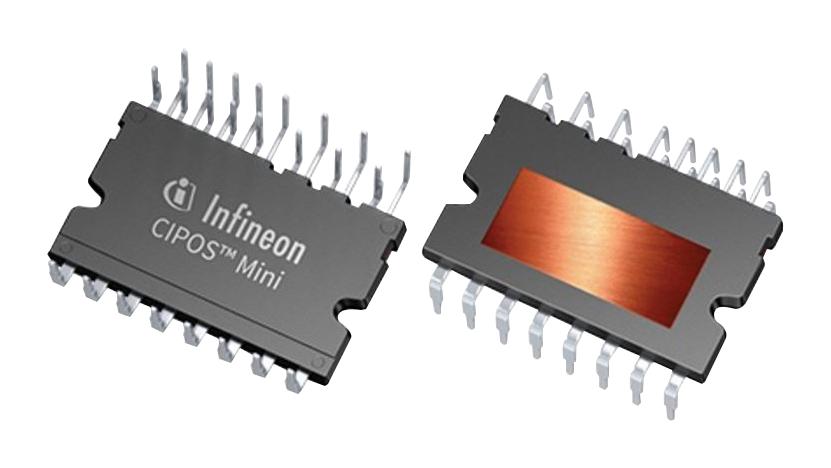

INFINEON IKCM20L60GDXKMA1 Power Module
The CIPOS™ module family integrates power and control components for controlling three-phase AC motors and permanent magnet motors in variable speed drives, such as air conditioning units, refrigerators, and washing machines. It features rugged TRENCHSTOP™ IGBTs, anti-parallel diodes, an optimized SOI gate driver, overcurrent shutdown, and temperature monitoring, ensuring high reliability, electrical isolation, and EMI protection. The module's design emphasizes thermal conduction and overload protection, making it ideal for low power motor drives and home appliances with compact, efficient implementation.
INFINEON IKCM20L60GDXKMA1 Power Module Specifications:
- Package type: Dual In-Line molded module with 3-bridge configuration
- Voltage rating: 600V maximum blocking voltage, 450V DC link
- Current capacity: Up to 20A output current, peak 40A for short durations
- IGBT type: TRENCHSTOP™ technology for high efficiency
- Thermal resistance: Single IGBT 1.85 K/W, Diode 2.85 K/W (junction to case)
- Control supply voltage: VDD 12V to 20V, VBS and VS floating, up to 20V
- Switching frequency: Up to 20 kHz
- Overcurrent detection: Built-in overcurrent shutdown and fault output
- Temperature rating: -40°C to +150°C junction temperature
- Isolation test voltage: 2000V RMS at 60Hz for minimum 1 minute
- Lead-free ROHS compliant terminal plating
- Mechanical: Mounting torque 0.49-0.78 Nm, weight approximately 6.58g, flatness within 50-100μm
Buy the Buy Infineon IKCM20L60GD Part Number IKCM20L60GD Online
Order the Infineon IKCM20L60GD power module online today for superior control of three-phase motors and reliable overload protection. Designed for low power motor drives and household appliances, this module integrates rugged TRENCHSTOP™ IGBTs with anti-parallel diodes and an advanced SOI gate driver, enabling efficient, compact, and EMI-safe solutions. Its high thermal conduction, overcurrent shutdown, and temperature monitoring features ensure optimal performance and system reliability in your applications. Purchase now for seamless integration into your motor control systems.
Buy Infineon IKCM20L60GD now and experience unmatched reliability and high-performance power switching for motor drives and home appliances.
Frequently Asked Questions
Where can I buy INFINEON IKCM20L60GDXKMA1?
You can click on the BUY or RFQ button to purchase IKCM20L60GDXKMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IKCM20L60GDXKMA1?
You can download the IKCM20L60GDXKMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IKCM20L60GDXKMA1?
INFINEON
