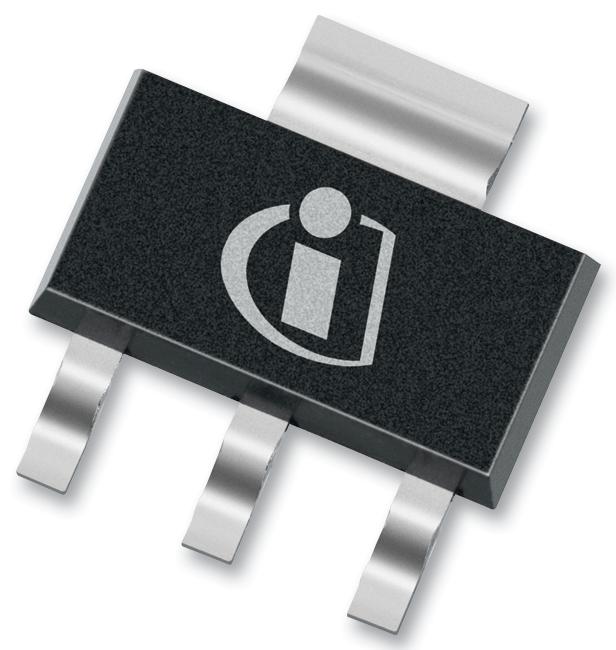

INFINEON IPN70R900P7SATMA1 High Voltage Power Transistor
The 700V CoolMOS P7 Power Transistor is a high-voltage MOSFET designed for efficient switching in consumer and industrial applications. It features low losses, excellent thermal behavior, integrated ESD protection, and supports high power density for slim, high-efficiency designs. Ideal for flyback topologies such as chargers, adapters, and lighting systems, this transistor combines superjunction technology with cost-effective performance, enabling high-frequency operation and reliable long-term durability in demanding environments.
INFINEON IPN70R900P7SATMA1 High Voltage Power Transistor Specifications:
- Drain-source breakdown voltage: 700 V
- Continuous drain current: 3.5 A at Tj=100°C
- Pulsed drain current: 12.8 A at Tc=25°C
- Maximum repetitive avalanche current: 3.6 A
- Gate threshold voltage: 2.5 V to 3.5 V
- Gate source voltage: -30 V to 30 V
- Gate charge Qg: 6.8 nc
- Output capacitance Coss: 5 pF
- Drain-source on-resistance Rds(on): 153 mΩ at Vos=10V
- Maximum operating junction temperature: -40°C to 150°C
- Thermal resistance junction to ambient: 75°C/W (PCB cooling), 160°C/W (minimal footprint)
- Soldering temperature: Up to 260°C
- ESD classification: Class 1C
- Switching times: Turn-on delay 12 ns, turn-off delay 58 ns, fall time 31 ns
- Package: PG-SOT223
- Maximum power dissipation: 6.5 W at Tc=25°C
Buy the Infineon IPN70R900P7S – Reliable High Voltage Switch for Industrial Applications
Discover the high-performance 700V power transistor designed for efficient switching in consumer and industrial electronics. Featuring low conduction and switching losses, excellent thermal characteristics, and robust ESD protection, this device ensures reliable operation in slim and high-density designs like chargers, adapters, and lighting systems. Its superjunction technology allows high-frequency switching, enabling more compact products with superior efficiency. Perfect for engineers needing durable, cost-effective, and high-voltage MOSFETs for demanding applications, available now for fast online procurement.
Get Infineon IPN70R900P7S today—built for precision and long-lasting durability in high-voltage switching solutions.
Frequently Asked Questions
Where can I buy INFINEON IPN70R900P7SATMA1?
You can click on the BUY or RFQ button to purchase IPN70R900P7SATMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPN70R900P7SATMA1?
You can download the IPN70R900P7SATMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPN70R900P7SATMA1?
INFINEON
