INFINEON ICE2HS01GXUMA1 High Power Controller
The ICE2HS01G is a high-performance resonant mode controller designed for half-bridge LLC converters, supporting synchronous rectification drives. It operates within a frequency range of 30kHz to 1MHz, featuring precise frequency setting, adjustable dead time, and multiple protections including overcurrent, overvoltage, and overload safeguards. Its advanced drive technology enables high efficiency across varying loads, with integrated soft start, light load modes, and robust protection functions. Suitable for PC, server, telecom, and flat-panel power supplies, this controller ensures reliable, high-performance operation in compact PG-DSO-20 packages.
INFINEON ICE2HS01GXUMA1 High Power Controller Specifications:
- Switching frequency range: 30kHz to 1MHz
- Maximum supply voltage VCC: 18V
- Operating junction temperature: -25°C to 125°C
- Dead time adjustment: 100ns to 1000ns via external resistor
- Output duty cycle: 50% for primary and secondary switches
- Reference voltage Vref: 5V
- Protection features: overcurrent, overvoltage, overload, overtemperature with latch-off
- Soft start and soft restart functions with programmable time
- Input voltage sensing via resistive divider for brown-out and overvoltage detection
- Synchronous rectification control with programmable delay and turn-off times
- High efficiency operation suitable for power supplies and adapters

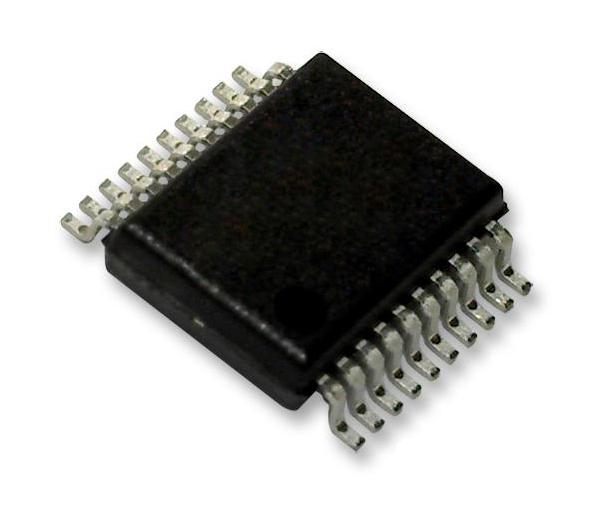

Buy the Buy Infineon ICE2HS01G Part Number ICE2HS01GXUMA1 Online
Enhance your power supply designs with the ICE2HS01G high-performance LLC resonant mode controller. Offering precise frequency regulation, adjustable dead time, and robust protection functions, this IC ensures efficient, reliable operation for half-bridge LLC converters in PC, server, telecom, and flat-panel applications. Its advanced synchronous rectification drive technology supports high efficiency across the load range. Compact and easy to integrate in PG-DSO-20 packages, the ICE2HS01G provides the performance and protection needed for modern power supply designs.
Get Infineon ICE2HS01G today—built for high efficiency, precise frequency control, and reliable power management in LLC converter applications.
Frequently Asked Questions
Where can I buy INFINEON ICE2HS01GXUMA1?
You can click on the BUY or RFQ button to purchase ICE2HS01GXUMA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part ICE2HS01GXUMA1?
You can download the ICE2HS01GXUMA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of ICE2HS01GXUMA1?
INFINEON
