INFINEON IPW60R037CSFDXKSA1 Power MOSFET
The IPW60R037CSFD is a 600V power MOSFET designed for high efficiency in off-board EV charging applications. Built on Infineon's CoolMOS™ superjunction technology, it features low gate charge, optimized switching behavior, an integrated fast body diode, and a reduced reverse recovery charge for enhanced reliability and high power density. Suitable for soft and hard switching topologies, it excels in phase-shift full-bridge and PFC circuits, meeting industrial standards, and ensuring ruggedness and efficiency for demanding power conversion systems.
INFINEON IPW60R037CSFDXKSA1 Power MOSFET Specifications:
- Voltage Rating: 650V Vos @ Tj,max
- Drain Current: 236A pulsed
- Continuous Drain Current: unspecified, typically high for power applications
- Power Dissipation: 245W at Tj=25°C
- Avalanche Energy (single pulse): 277mJ
- Avalanche Repetitive Energy: 1.39mJ
- Gate Charge: Total Qg 136nc, Qgs 30nc, Qga 47nc
- Turn-on Delay Time: 53ns
- Fall Time: 6ns
- Switching Time (turn-off): 196ns
- Drain-source Resistance: 0.070Ω at 10V
- Body Diode Recovery Time: 168ns
- Operating Junction Temperature Range: -55°C to 150°C
- Thermal Resistance Junction-to-Ambient: 62°C/W
- Package: PG-TO 247-3 (3-pin)
- Insulation Voltage: 600V (test condition)
- Device Type: Superjunction Power MOSFET

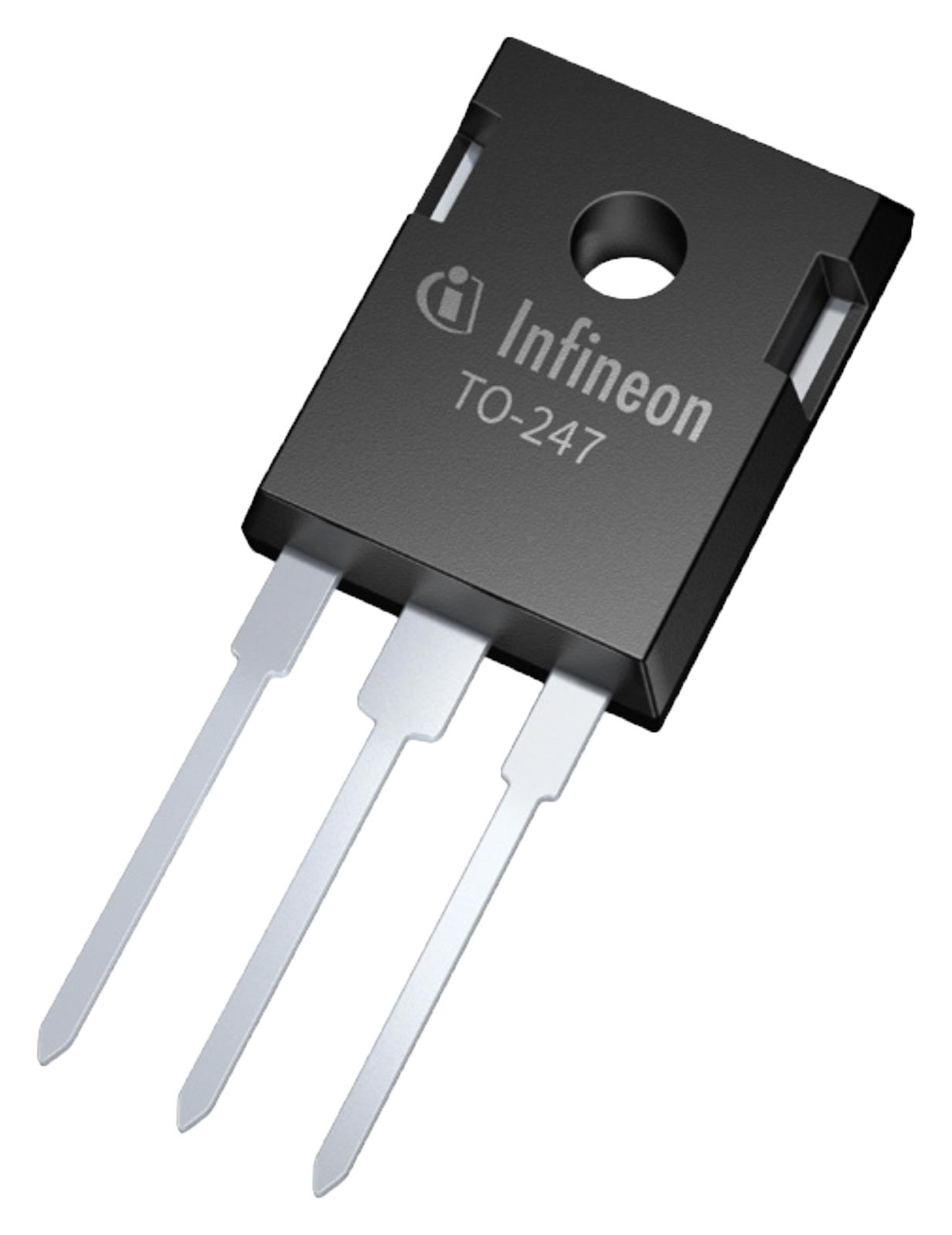

Buy the Buy Infineon Power MOSFET Part Number IPW60R037CSFD Online
Purchase the Infineon IPW60R037CSFD power MOSFET online today to ensure high efficiency and reliable performance in off-board EV charging stations. Featuring a 600V voltage rating, low gate charge, fast body diode, and robust switching capabilities, this device is tailored for demanding electrical systems. Its optimized parameters support high power density solutions and improve overall system reliability, making it ideal for industrial applications, phase-shift full-bridge, and PFC topologies. Buy now to upgrade your power modules with trusted quality and outstanding performance.
Order your Infineon IPW60R037CSFD power MOSFET today and enhance your EV charging, soft switching, and high-density power conversion projects with reliable efficiency.
Frequently Asked Questions
Where can I buy INFINEON IPW60R037CSFDXKSA1?
You can click on the BUY or RFQ button to purchase IPW60R037CSFDXKSA1 from an authorized INFINEON distributor.
How do I troubleshoot issues or seek technical support for part IPW60R037CSFDXKSA1?
You can download the IPW60R037CSFDXKSA1 datasheet or visit the INFINEON website for support.
Who is the manufacturer of IPW60R037CSFDXKSA1?
INFINEON
